Product Summary

The MM908E626AVDWB is an integrated stepper motor driver. The HC08 includes flash memory, a timer, enhanced serial communications interface (ESCI), an analog-to-digital converter (ADC), serial peripheral interface (SPI) (only internal), and an internal clock generator (ICG) module. The analog control die provides fully protected H-bridge outputs, voltage regulator, autonomous watchdog, and local interconnect network (LIN) physical layer. The MM908E626AVDWB single-package solution, together with LIN, provides optimal application performance adjustments and space-saving PCB design. The MM908E626AVDWB is well suited for the control of automotive stepper applications like climate control and light-levelling.

Parametrics

MM908E626AVDWB absolute maximum ratings: (1)Supply Voltage Analog Chip Supply Voltage under Normal Operation (Steady-state)VSUP(SS): -0.3 to 28V; (2)Supply Voltage Analog Chip Supply Voltage under Transient Conditions(1)VSUP(PK): -0.3 to 40V; (3)Supply Voltage MCU Chip Supply Voltage VDD: -0.3 to 6.0V; (4)Maximum Microcontroller VSS Output Current IMVSS: 100 mA; (5)Maximum Microcontroller VDD Input Current IMVDD: 100 mA.

Features

MM908E626AVDWB features: (1)High performance M68HC08EY16 core; (2)16 K bytes of on chip flash memory; (3)512 bytes of RAM; (4)Internal clock generation module; (5)Two 16 bit, 2 channel timers; (6)10 Bit Analog to Digital converter; (7)Four low RDS(ON)half bridge outputs; (8)13 microcontroller I/Os; (9)Pb free packaging designated by suffix code EK.

Diagrams

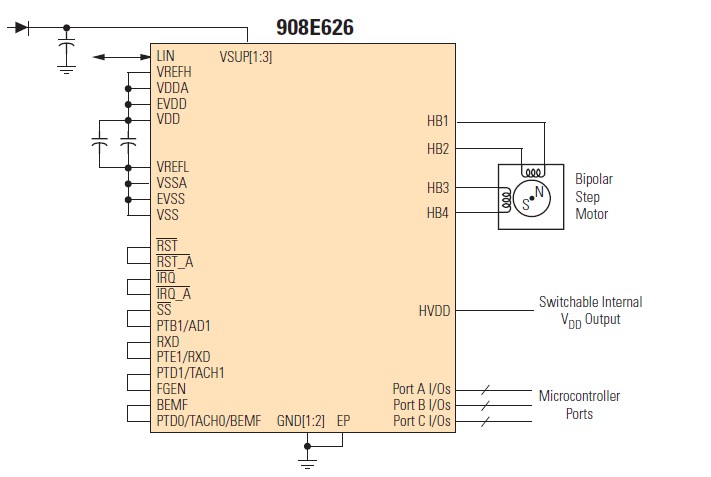

 MM908E626AVDWB pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MM908E626AVDWB
MM908E626AVDWB

Freescale Semiconductor

Motor / Motion / Ignition Controllers & Drivers QUADSTEPPER

Data Sheet

Negotiable
