Product Summary

The OP213ESZ is a single-supply operational amplifier. The OP213ESZ has been designed for systems with internal calibration. Often these processor-based systems are capable of calibrating corrections for offset and gain, but they cannot correct for temperature drifts and noise. Optimized for these parameters, the OP213ESZ can be used to take advantage of superior analog performance combined with digital correction. Many systems using internal calibration operate from unipolar supplies, usually either 5 V or 12 V. The OPx13 family is designed to operate from single supplies from 4 V to 36 V and to maintain its low noise and precision performance. The OP213ESZ applications are: (1)Digital scales; (2)Multimedia; (3)Strain gages; (4)Battery powered instrumentation; (5)Temperature transducer amplifier.

Parametrics

OP213ESZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage: ±10 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range: －65℃to +150℃; (6)Operating Temperature Range: －40℃to +85℃; (7)Junction Temperature Range: －65℃to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

OP213ESZ features: (1)Single- or dual-supply operation; (2)Low noise: 4.7 nV/√Hz @ 1 kHz; (3)Wide bandwidth: 3.4 MHz; (4)Low offset voltage: 100 uV; (5)Very low drift: 0.2 uV/℃; (6)Unity gain stable; (7)No phase reversal.

Diagrams

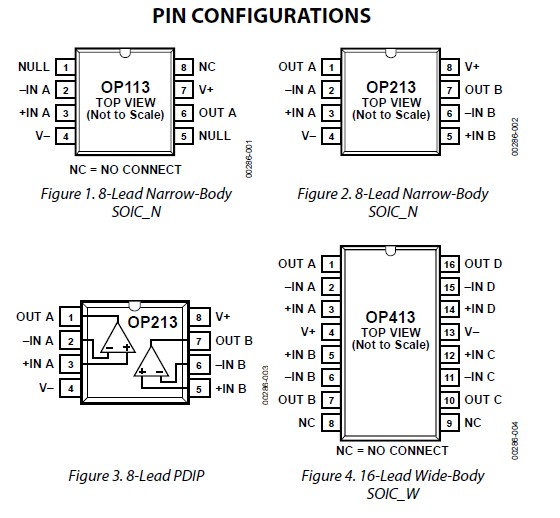

OP213ESZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP213ESZ
OP213ESZ

IC OPAMP GP 3.4MHZ DUAL LN 8SOIC
Data Sheet
0-1: $7.61
1-10: $6.92
10-100: $5.88
100-250: $5.37
250-500: $5.02
500-1000: $4.62
OP213ESZ-REEL
OP213ESZ-REEL

IC OPAMP GP 3.4MHZ DUAL LN 8SOIC
Data Sheet
0-2500: $4.62
OP213ESZ-REEL7
OP213ESZ-REEL7

IC OPAMP GP 3.4MHZ DUAL LN 8SOIC
Data Sheet
0-1000: $4.62
