Product Summary

The OP284FSZ is an input and output operational amplifier featuring rail-to-rail inputs and outputs. They are guaranteed to operate from 3 V to 36 V (or ±1.5 V to ±18 V) and function with a single supply as low as 1.5 V. The OP284FSZ is superb for single-supply applications requiring both ac and precision dc performance. The combination of bandwidth, low noise, and precision makes the OP284FSZ useful in a wide variety of applications, including filters and instrumentation. The OP284FSZ applications are: (1)Battery powered instrumentation; (2)Power supply control and protection; (3)Telecom; (4)DAC output amplifier; (5)ADC input buffer.

Parametrics

OP284FSZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage1: ±0.6 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range P-Suffix, S-Suffix Packages: －65℃to +150℃; (6)Operating Temperature Range OP184/OP284/OP484E/OP484F: －40℃to +125℃.

Features

OP284FSZ features: (1)Single-supply operation; (2)Wide bandwidth: 4 MHz; (3)Low offset voltage: 65 uV; (4)Unity-gain stable; (5)High slew rate: 4.0 V/us; (6)Low noise: 3.9 nV/√Hz.

Diagrams

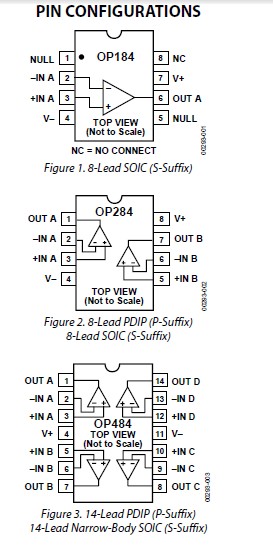

OP284FSZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP284FSZ
OP284FSZ

IC OPAMP GP R-R 4.25MHZ LN 8SOIC
Data Sheet
0-1: $4.16
1-10: $3.74
10-100: $3.08
100-250: $2.83
250-500: $2.58
500-1000: $2.25
1000-2500: $2.22
OP284FSZ-REEL
OP284FSZ-REEL

IC OPAMP GP R-R 4.25MHZ LN 8SOIC
Data Sheet
0-2500: $2.22
OP284FSZ-REEL7
OP284FSZ-REEL7

IC OPAMP GP R-R 4.25MHZ LN 8SOIC
Data Sheet
0-1000: $2.25
