Product Summary

The PSD854F2-90MI is a flash in-system programmable peripheral for 8-bit MCUs, 5V. It features an optimized macrocell logic architecture. The PSD macrocell was created to address the unique requirements of embedded system designs. It allows direct connection between the system address/data bus, and the internal PSD registers, to simplify communication between the MCU and other supporting devices.

Parametrics

PSD854F2-90MI absolute maximum ratings: (1)storage temperature: -65 to 125℃; (2)lead temperature during soldering: 235℃; (3)input and output voltage: -0.6 to 7V; (4)supply voltage: -0.6 to 7V; (5)device programmer supply voltage: -0.6 to 14V; (6)electrostatic discharge voltage: -2000 to 2000V.

Features

PSD854F2-90MI features: (1)flash in-system programmable peripheral for 8-bit MCUS; (2)dual bank flash memories; (3)up to 256Kbit battery-backed sram; (4)enhanced jtag serial port; (5)PLD with macrocell; (6)in-system programming with jtag; (7)page register; (8)high endurance.

Diagrams

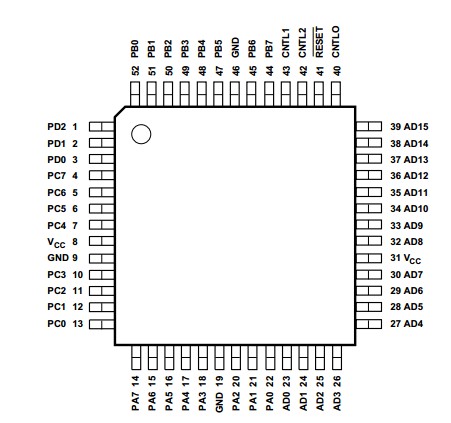

PSD854F2-90MI pin connections

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PSD854F2-90MI
PSD854F2-90MI
STMicroelectronics
CPLD - Complex Programmable Logic Devices 5.0V 2M 90ns
Data Sheet
Negotiable
