Product Summary

The SN74F373N is an octal transparent D-type latch with 3-state outputs. The SN74F373N features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The device is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The SN74F373N is transparent D-type latch. While the latch-enable (LE) input is high, the Q outputs will follow the data (D) inputs. When the latch enable is taken low, the Q outputs are latched at the logic levels set up at the D inputs.

Parametrics

SN74F373N absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -1.2 V to 7 V; (3)Input current range: -30 mA to 5 mA; (4)Voltage range applied to any output in the disabled or power-off state: -0.5 V to 5.5 V; (5)Voltage range applied to any output in the high state: -0.5 V to VCC; (6)Current into any output in the low state: 48 mA; (7)Operating free-air temperature range: 0℃ to 70℃; (8)Storage temperature range: -65℃ to 150℃.

Features

SN74F373N features: (1)Eight Latches in a Single Package; (2)3-State Bus-Driving True Outputs; (3)Full Parallel Access for Loading; (4)Buffered Control Inputs; (5)Package Options Include Plastic Small-Outline (SOIC) and Shrink Small-Outline (SSOP) Packages, Ceramic Chip Carriers, and Plastic and Ceramic DIPs.

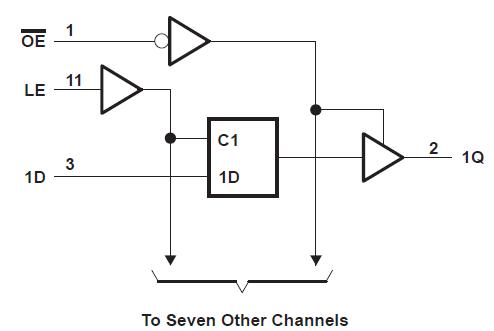

Diagrams
