Product Summary
The SN74LS251N is a monolithic data selector/multiplexer with 3-state outputs. The SN74LS251N contains full on-chip binary decoding to select one-of-eight data sources and feature a strobe-controlled three-state output. The strobe must be at a low logic level to enable the SN74LS251N. The three-state outputs permit a number of outputs to be connected to a common bus. When the strobe input is high, both outputs are in a high-impedance state in which both the upper and lower transistors of each totem-pole output are off, and the output neither drives nor loads the bus significantly. When the strobe is low, the outputs are activated and operate as standard TTL totem-pole outputs.
Parametrics
SN74LS251N absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage: 5.5 V; (3)Off-state output voltage: 5.5 V; (4)Operating free-air temperature range: 0℃ to 70℃; (5)Storage temperature range: -65℃ to 150℃.
Features
SN74LS251N features: (1)Three-State Versions of ’151, ’LS151, ’S151; (2)Three-State Outputs Interface Directly with System Bus; (3)Perform Paralle卜to-Serial Conversion; (4)Permit Multiplexing from N-lines to One Line; (5)Complementary Outputs Provide True and Inverted Data; (6)Fully Compatible with Most TTL Circuits.

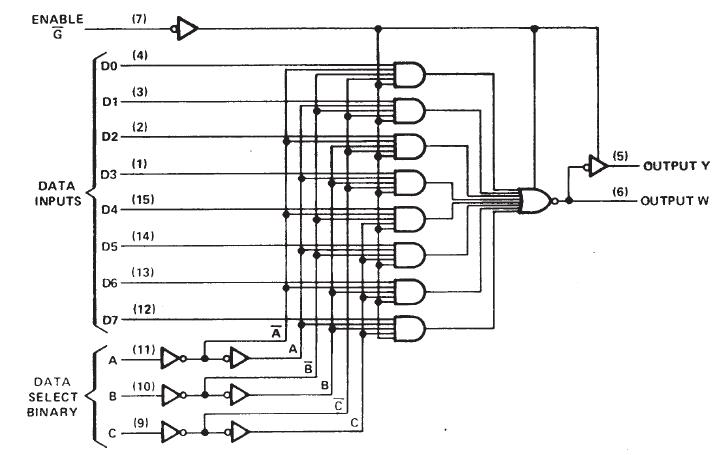

Diagrams
