Product Summary
The STE100STR is an ethernet controller with integrated PHY. It was designed with advanced CMOS technology to provide glueless 32-bit bus master interface for PCI bus, boot ROM interface, CSMA/CD protocol for Fast Ethernet, as well as the physical media interface for 100BASE-TX of IEEE802.3u and 10BASE-T of IEEE802.3. The auto-negotiation function is also supported for speed and duplex detection.
Parametrics
STE100STR absolute maximum ratings: (1)supply voltage: -0.5 to 7V; (2)input voltage: -0.5 to VCC+0.5V; (3)output voltage: -0.5 to VCC+0.5V; (4)Storage temperature: -65 to 150℃; (5)ambient temperature: 0 to 70℃; (6)ESD protection: 2000V.
Features
STE100STR features: (1)IEEE802.3u 100BASE-TX and IEEE802.3 10BASE-T compliant; (2)Support for IEEE802.3x flow control; (3)IEEE802.3u Auto-Negotiation support for 10BASE-T and 100BASE-TX; (4)PCI bus interface Rev. 2.2 compliant; (5)ACPI and PCI power management standard compliant; (6)Support PC99 wake on LAN.

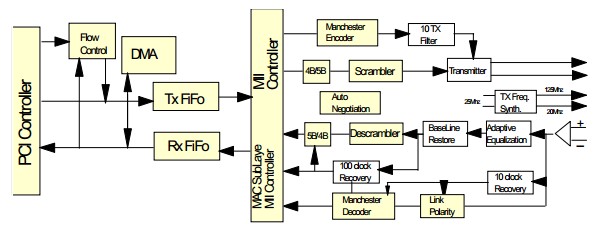

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STE100STR |
STMicroelectronics |
Ethernet ICs Fast Ethernet Cont |
Data Sheet |
Negotiable |
|
||||||||||||
