Product Summary

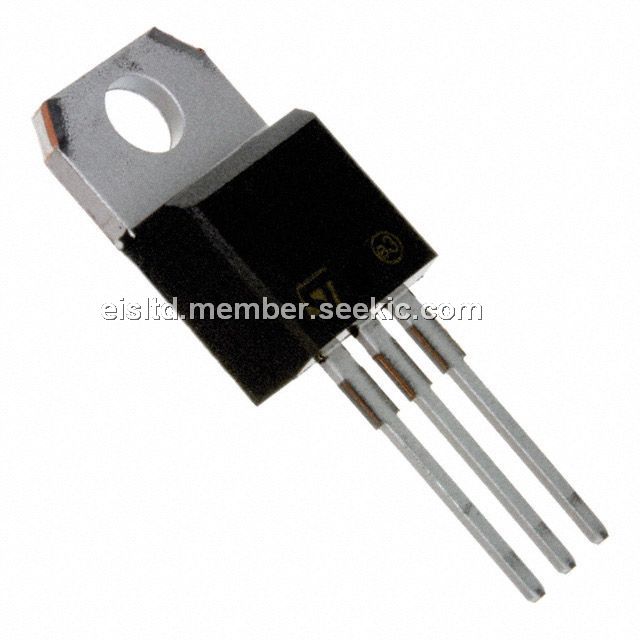

The STPS2045CTC is a power schottky rectifier. The STPS2045CT is suited for Switch-Mode Power Supply and high frequency DC to DC converters. Packaged either in TO-220AB, ISOWATT220AB or D2PAK, the STPS2045CTC is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Parametrics

STPS2045CTC absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 45 V; (2)RMS forward current, IF(RMS): 30 A; (3)Average forward current, TO-220AB, D2PAK / I2PAK, Tc = 155℃ Per diode, IF(AV): 10 A; TO-220FPAB, Tc = 135℃ Per device, IF(AV): 20 A; (4)Surge non repetitive forward current, tp = 10 ms sinusoidal, IFSM: 180 A; (5)Repetitive peak reverse current, tp = 2μs square, F = 1kHz, IRRM: 1A; (6)Non repetitive peak reverse current, tp = 100 ms square, IRSM: 2A; (7)Storage temperaturerange, Tstg: -65 to +175℃; (8)Maximum operating junction temperature, Tj: 175℃; (9)Critical rate of rise of reverse voltage, dV/dt: 10000 V/μs.

Features

STPS2045CTC features: (1)very smallconduction losses; (2)negligibleswitching losses; (3)extremelyfast switching; (4)insulatedpackage: ISOWATT220AB Insulating voltage = 2000VDC; Capacitance= 12pF.

Diagrams

STPS2045CTC circuit diagram
