Product Summary

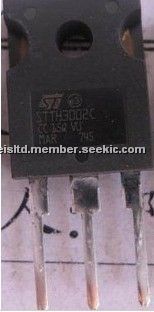

The STTH3002CW is a high efficiency ultrafast diode. The STTH3002CW is suited for Switch Mode Power Supplies and High frequency DC to DC converters. Packaged in TO-220AB, D2PAK, TO-247 and I2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Parametrics
STTH3002CW absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 200 V; (2)RMS forward current, IF(RMS): 50 A; (3)Average forward current, δ = 0.5, Tc = 155℃ Per diode, IF(AV): 15 A; Tc = 145℃ Per device, IF(AV): 30 A; (4)Surge non repetitive forward current, tp = 10 ms sinusoidal, IFSM: 180 A; (5)Storage temperature range, Tstg: -65 to + 175℃; (6)Maximum operating junction temperature, Tj: 175℃.
Features
STTH3002CW features: (1)Suited for SMPS; (2)Low losses; (3)Low forward and reverse recovery times; (4)High surge current capability; (5)High junction temperature; (6)Low leakage current.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STTH3002CW |
STMicroelectronics |
Rectifiers 2x15 Amp 200 Volt |
Data Sheet |
|
|
||||||||||||||||||
