Product Summary
The TC4427VOA is a dual High-Speed Power MOSFET Driver. The TC4427VOA has matched rise and fall times when charging and discharging the gate of a MOSFET. The device is highly latch-up resistant under any conditions within their power and voltage ratings. The device is not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. The TC4427VOA can accept, without damage or logic upset, up to 500mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against Electrostatic Discharge (ESD) up to 4 kV. The applications of the TC4427VOA include Switch Mode Power Supplies, Line Drivers, Pulse Transformer Drive.
Parametrics
TC4427VOA absolute maximum ratings: (1)Supply Voltage: +22V; (2)Input Voltage, IN A or IN B: (VDD + 0.3V) to (GND–5V); (3)Package Power Dissipation (TA ≤ 70℃), MSOP: 340 mW; PDIP: 730 mW; SOIC: 470 mW; (4)Storage Temperature Range: -65℃ to +150℃; (5)Maximum Junction Temperature: +150℃.
Features
TC4427VOA features: (1)High Peak Output Current - 1.5A; (2)Wide Input Supply Voltage Operating Range: -4.5V to 18V; (3)High Capacitive Load Drive Capability - 1000 pF in 25 ns (typ.); (4)Short Delay Times - 40 ns (typ.); (5)Matched Rise and Fall Times; (6)Low Supply Current; (7)Low Output Impedance - 7Ω; (8)Latch-Up Protected: Will Withstand 0.5A Reverse Current; (9)Input Will Withstand Negative Inputs Up to 5V; (10)ESD Protected - 4 kV; (11)Pin-compatible with the TC426/TC427/TC428; (12)Space-saving 8-Pin MSOP and 8-Pin 6x5 DFN Packages.

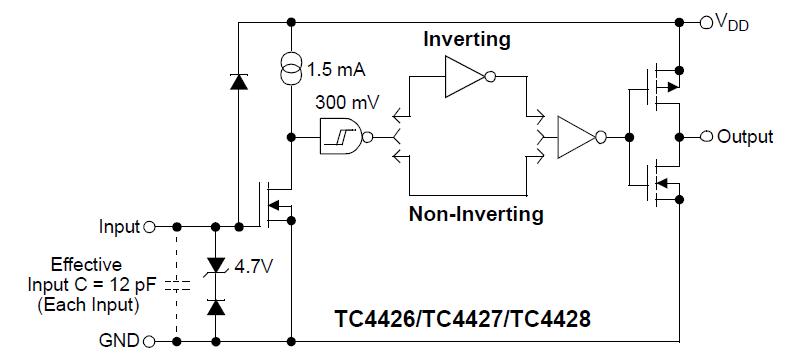

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC4427VOA |
Microchip Technology |
Power Driver ICs 1.5A Dual MOSFET Dr NonInver Vtemp SOIC8 |
Data Sheet |
|
|
||||||||||||
|
TC4427VOA713 |
Microchip Technology |
Power Driver ICs 1.5A Dual |
Data Sheet |
|
|
||||||||||||
