TLE6365G

Step Down Voltage-Regulator, 5V, 0.4A, P-DSO-8-3, TLE6365G

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: TLE6365G

Brand:: eupec GmbH - infineon | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:TLE6365G
US $0.15 - 2.40
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
P102W

US $15.00 - 22.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

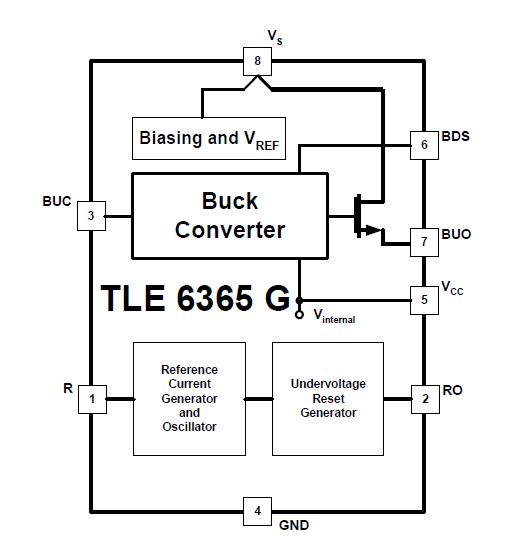

The TLE6365G is a power supply circuit especially designed for automotive applications. The TLE6365G is based on Infineon’ power technology SPT which allows bipolar and CMOS control circuitry to be integrated with DMOS power devices on the same monolithic circuitry. The TLE6365G contains a buck converter and a power on reset feature to start up the system. The very small P-DSO-8-3 SMD package meets the application requierements. It delivers a precise 5V fully short circuit protected output voltage. Furthermore, the build-in features like under- and overvoltage lockout for supply- and output-voltage and the overtemperature shutdown feature increase the reliability of the TLE6365G supply system.

Parametrics

TLE6365G absolute maximum ratings: (1)Supply voltage VS: – 0.3 to 46 V; (2)Buck output voltage VBUO: – 1 to 46 V; (3)Buck driver supply voltage VBDS: – 0.3 to 55 V; (4)Buck compensation input voltage VBUC: – 0.3 to 6.8 V; (5)Logic supply voltage VCC: – 0.3 to 6.8 V; (6)Reset output voltage VRO: – 0.3 to 6.8 V; (7)Current reference voltage VR: – 0.3 to 6.8 V; (8)ESD-Protection (Human Body Model; R=1,5kΩ; C=100pF) all pins to GND VHBM: –2 to 2 kV; (9)Junction temperature Tj: – 40 to 150℃; (10)Storage temperature Tstg: – 50 to 150℃.

Features

TLE6365G features: (1)Step down converter; (2)Supply Over- and Under-Voltage-Lockout; (3)Low Output voltage tolerance; (4)Output Overvoltage Lockout; (5)Output Under-Voltage-Reset with delay; (6)Overtemperature Shutdown; (7)Wide Ambient operation range -40℃ to 125℃; (8)Wide Supply voltage operation range; (9)Very low current consumption; (10)Very small P-DSO-8 SMD package.
