TLE7810G

Product Summary

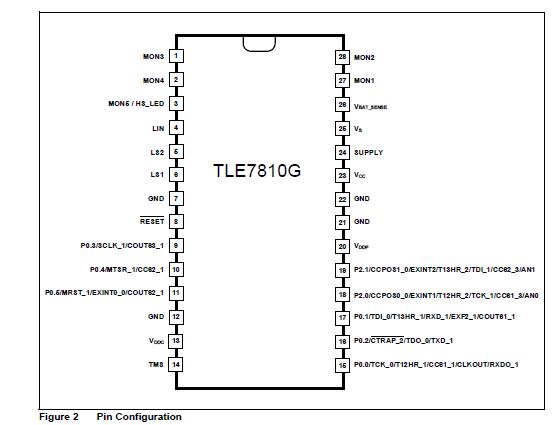

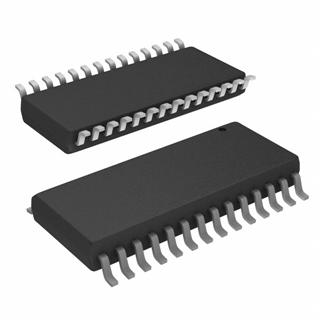

The TLE7810G is an Integrated double low-side switch, high-side/LED driver, hall supply, wake-up inputs and LIN communication with embedded MCU (16kB Flash). The TLE7810G is realized as Multi-Chip-Module (MCM) in a PG-DSO-28-21 package, and is designed to withstand the severe conditions of automotive and industrial applications.

Parametrics

TLE7810G absolute maximum ratings: (1)Supply voltage VS: -0.3 to 40 V; (2)Regulator output voltage VCC: -0.3 to 5.5 V; (3)Input voltage at MON1-4 VMONx: VS - 40 to 40 V; (4)Input voltage at MON5/HS_LED (output) VMON5: VS - 40 to VS + 0.3 V; (5)Input voltage at VBAT_SENSE VBATSENSE: VS - 40 to 40 V; (6)Low-Side Switches LSx VLSx: -0.3 to VLSx_CL V; (7)SUPPLY Output VSupply: -0.3 to VS + 0.3 V; (8)Logic input voltages (TMS, TCK, TDI, CLKIN) VI: -0.3 to VCC + 0.3V; (9)Logic output voltage (TDO, RESET) VDRI,RD: -0.3 to VCC + 0.3 V; (10)LIN line bus input voltages Vbus: VS - 40 to 40 V; (11)Electrostatic discharge voltage “HBM” at pin LIN, MONx, VBAT_SENSE vs. GND VESD: -4 to 4 kV; (12)Electrostatic discharge voltage “HBM” at pin VDDC vs. GND VESD: -600 to 600 V; (13)Electrostatic discharge voltage “HBM” at any other pin VESD: -2 to 2 kV; (14)Electrostatic discharge voltage “CDM” at any pin VESD: -500 to 500 V; (15)Junction temperature Tj: -40 to 150℃; (16)Storage temperature Tstg: -50 to 150℃.

Features

TLE7810G features: (1)Low-Dropout Voltage Regulator (LDO); (2)LIN Transceiver; (3)Standard 16-bit SPI-Interface; (4)2 × Low-Side Switches, e.g. as Relay Driver; (5)2 × Supply e.g. for Hall Sensor Supply / LED Driver; (6)5 × High-Voltage Wake-Up Inputs; (7)Programmable. Window Watchdog & Power Saving Modes; (8)Power-On and Undervoltage Reset Generator; (9)Overtemperature Protection; (10)Short Circuit Protection; (11)Compatible to 8051 μC Core; (12)Two clocks per machine cycle; (13)8kByte Boot ROM for test and Flash routines; (14)LIN Bootloader (Boot ROM); (15)256 Byte RAM / 512 Byte XRAM; (16)16kByte Flash Memory for Program Code & Data; (17)On-Chip Oscillator; (18)Power Saving Modes (slow-down & idle mode); (19)Programmable Watchdog Timer; (20)10-bit A/D Converter, e.g. for Temperature & Vbat-Measurement; (21)Three 16-bit Timers & Capture/Compare Unit; (22)General Purpose I/Os, e.g. with PWM Functionality; (23)On-Chip Debug Support (JTAG); (24)UART and Synchronous Serial Channel (SSC respective SPI); (25)Package PG-DSO-28-21; (26)Temperature Range TJ: -40℃ up to 150℃; (27)Green Package (RoHS compliant); (28)AEC Qualified.
