Product Summary
The TLE7824G is an Integrated double low-side switch, high-side/LED driver, hall supply, wake-up inputs and LIN communication with embedded MCU (24kB Flash).
Parametrics
TLE7824G absolute maximum ratings: (1)Supply voltage VS: -0.3 to 40 V; (2)Regulator output voltage VCC: -0.3 to 5.5 V; (3)Input voltage at MON1-4 VMONx: VS - 40 to 40; (4)Input voltage at MON5/HS_LED (output) VMON5: VS - 40 to VS + 0.3 V; (5)Input voltage at VBAT_SENSE VBATSENSE: VS - 40 to 40 V; (6)Low-Side Switches LSx VLSx: -0.3 to VLSx_CL V; (7)SUPPLY Output VSupply: -0.3 to VS + 0.3 V; (8)Logic input voltages (TMS, TCK, TDI, CLKIN) VI: -0.3 to VCC + 0.3 V; (9)Logic output voltage (TDO, RESET) VDRI,RD: -0.3 to VCC + 0.3 V; (10)LIN line bus input voltages Vbus VS: - 40 to 40 V; (11)Electrostatic discharge voltage “HBM” at pin LIN, MONx, VBAT_SENSE vs. GND VESD: -4 to 4 kV; (12)Electrostatic discharge voltage “HBM” at pin VDDC vs. GND VESD: -600 to 600 V; (13)Electrostatic discharge voltage “HBM” at any other pin VESD: -2 to 2 kV; (14)Electrostatic discharge voltage “CDM” at any pin VESD: -500 to 500 V; (15)Junction temperature Tj: -40 to 150℃; (16)Storage temperature Tstg: -50 to 150℃.
Features
TLE7824G features: (1)Low-Dropout Voltage Regulator (LDO); (2)LIN Transceiver; (3)Standard 16-bit SPI-Interface; (4)2 × Low-Side Switches, e.g. as Relay Driver; (5)2 × Supply e.g. for Hall Sensor Supply / LED Driver; (6)5 × High-Voltage Wake-Up Inputs; (7)Programmable. Window Watchdog & Power Saving Modes; (8)Power-On and Undervoltage Reset Generator; (9)Overtemperature Protection; (10)Short Circuit Protection; (11)Package PG-DSO-28-38; (12)Temperature Range TJ: -40℃ up to 150℃; (13)Green Package (RoHS compliant); (14)AEC Qualified.

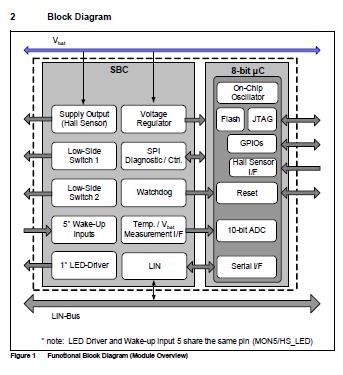

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE7824G |
Infineon Technologies |
Power Driver ICs EMBEDDED POWER |
Data Sheet |
|
|
||||||||||||
