Product Summary
The TLP113 is a photocoupler. The TLP113 is suitable for surface mount assembly. The TLP113 consists of a GaA As light emitting diode, optically coupled to an integrated high gain, high speed photodetector whose output is an open collector, schottky clamped transistor.
Parametrics
TLP113 absolute maximum ratings: (1)Forward current, IF: 20 mA; (2)Pulse forward current, IFP: 40 mA; (3)Peak transient forward current, IFPT: 1A; (4)Reverse voltage, VR: 5V; (5)Output current, IO: 25mA; (6)Output voltage, VO: 7V; (7)Supply voltage(1 minute maximum), VCC: 7V; (8)Output power dissipation, PO: 40 mW; (9)Operating temperature range, Topr: -40~85℃; (10)Storage temperature range, Tstg: -55~125℃; (11)Lead solder temperature (10s), Tsol: 260℃; (12)Isolation voltage (AC, 1 min., RH ≤ 60%), BVS: 2500Vrms.
Features
TLP113 features: (1)Input current thresholds: IF=10mA(max.); (2)Switching speed: 10MBd(typ.); (3)TTL / LSTTL compatible: VCC=5V; (4)Guaranteed performance over temp.: 0~70℃; (5)Isolation voltage: 2500Vrms(min.); (6)UL recognized: UL1577 file no. E67349.

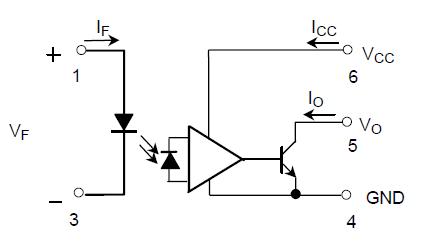

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP113(TPL,F) |
Toshiba |
High Speed Optocouplers IC cplr 10Mbps Logic IFT=10mA |
Data Sheet |
Negotiable |
|
||||||||||||
 |
TLP113(TPR) |
|
TRANSCPLR HS TRANS OUT 6MFSOP-5 |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP113(TPR,F) |
|
TRANSCPLR HS TRANS OUT 6MFSOP-5 |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP113TPRF |
Toshiba |
High Speed Optocouplers IC cplr 10Mbps Logic IFT=10mA |
Data Sheet |
|
|
||||||||||||
|
TLP113 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
