TSM103WIDT

TSM103WIDT, Dual Operational Amplifier and Voltage Reference, 8-SOIC, 36V, 150mA, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.50

PartNumber:: TSM103WIDT

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-30

From Other Seller

Part Number:TSM103WIDT
US $0.10 - 1.50
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

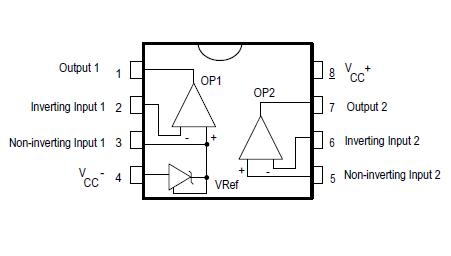

The TSM103WIDT is a dual operational amplifier and voltage reference. The TSM103WIDT is a monolithic IC that includes one independent op-amp and another op-amp for which the non-inverting input is wired to a 2.5V fixed Voltage Reference. The TSM103WIDT offers both space and cost savings in many applications such as power supply management or data acquisition systems.

Parametrics

TSM103WIDT absolute maximum ratings: (1)Supply Voltage, VCC: 36 V; (2)Differential Input Voltage, Vid: Vcc + 0.6 V; (3)Input VoltageL, Vi: -0.3 to Vcc + 0.3 V; (4)Storage temperature range, Tstg: -65 to + 150℃; (5)Continuous cathode current range, Ik: -100 to 150 mA; (6)Maximum Junction Temperature, Tj: 150℃; (7)Thermal Resistance Junction to Ambient (SO package), Rthja: 175 ℃/W; (8)Maximum Lead Temperature (10 seconds maximum), Tl: 260℃; (9)Electrostatic Discharge Protection, ESD: 1.5 kV.

Features

TSM103WIDT features: (1)Low input offset voltage: 0.5mV typ.; (2)Low supply current: 350μA/op. (@ VCC = 5V); (3)Medium bandwidth (unity gain): 0.9MHz; (4)Large output voltage swing: 0V to (VCC - 1.5V); (5)Input common mode voltage range includes ground; (6)Wide power supply range: 3 to 32V ±1.5 TO ±16V; (7)1.5kV ESD protection; (8)Voltage reference; (9)Fixed output voltage reference 2.5V; (10)±0.4% OR ±0.7% voltage precision; (11)Sink current capability: 1 to 100mA; (12)Typical output impedance: 0.2Ω.
