Product Summary

The V40100C-E3/4W is a Dual High-Voltage Trench MOS barrier Schottky Rectifier. The applications of the V40100C-E3/4W include high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection.

Parametrics

V40100C-E3/4W absolute maximum ratings: (1)Maximum repetitive peak reverse voltage, VRRM: 100 V; (2)Maximum average forward rectified current, per device, IF(AV): 40A; per diode, IF(AV): 20A; (3)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load per diode, IFSM: 250 A; (4)Non-repetitive avalanche energy at TJ = 25℃, L = 90 mH per diode, EAS: 230 mJ; (5)Peak repetitive reverse current at tp = 2 μs, 1 kHz, TJ = 38℃ ± 2℃ per diode, IRRM: 1.0 A; (6)Voltage rate of change (rated VR), dV/dt: 10 000 V/μs; (7)Operating junction and storage temperature range, TJ, TSTG: -40 to + 150℃.

Features

V40100C-E3/4W features: (1)trench mos schottky technology; (2)low forward voltage drop, low power losses; (3)high efficiency operation; (4)low thermal resistance; (5)meets msl level 1, per j-std-020, lf maximum peak of 245℃ (for to-263ab package); (6)solder bath temperature 275℃ maximum, 10 s, per jesd; (7)22-b106 (for to-220ab, to-263ab and to-262aa package); (8)compliant to rohs directive 2002/95/ec and in accordance to weee 2002/96/ec.

Diagrams

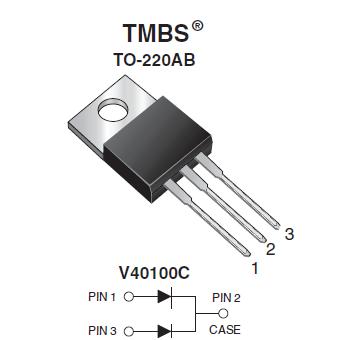

V40100C-E3/4W circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
V40100C-E3/4W
V40100C-E3/4W
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Amp 100 Volt Dual TrenchMOS
Data Sheet
0-1: $1.63
1-10: $1.42
10-100: $1.22
100-250: $1.09
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
V401
V401
Flambeau
Enclosures, Boxes, & Cases 8-3/8x4-1/2x1-3/4 (0.959cf)1compartmnt
Data Sheet
0-1: $3.24
1-2: $3.08
2-5: $2.92
5-25: $2.77
V40100C-E3
V40100C-E3

DIODE 40A 100V SCHOTTKY TO220-3
Data Sheet
0-1000: $0.70
V40100C-E3/4W
V40100C-E3/4W
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Amp 100 Volt Dual TrenchMOS
Data Sheet
0-1: $1.63
1-10: $1.42
10-100: $1.22
100-250: $1.09
V40100C-M3/4W
V40100C-M3/4W
Vishay
Schottky (Diodes & Rectifiers) 40 Amp 100 Volt Dual TrenchMOS
Data Sheet
0-560: $0.85
560-1000: $0.76
1000-2000: $0.73
2000-5000: $0.71
V40100K-E3/4W
V40100K-E3/4W
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Amp 100 Volt Dual TrenchMOS
Data Sheet
0-570: $0.81
570-1000: $0.63
1000-2000: $0.59
V40100PGW-M3/4W
V40100PGW-M3/4W
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40Amp 100volts Dual TrenchMOS
Data Sheet
0-380: $0.97
380-750: $0.87
750-1500: $0.77
1500-3000: $0.75
