Product Summary
The Z84C0006PEC is a fourth-generation enhanced microprocessor with exceptional computational power. The Z84C0006PEC offers higher system throughput and more efficient memory utilization than comparable second - and third-generation microprocessors. The internal registers contain 208 bits of read/write memory that are accessible to the programmer. The Z84C0006PEC includes two sets of six general-purpose registers which may be used individually as either 8-bit registers or as 16-bit register pairs. In addition, there are two sets of accumulator and flag registers. A group of "Exchange" instructions makes either set of main or alternate registers accessible to the programmer. The alternate set allows operation in foreground-background mode or it may be reserved for very fast interrupt response.
Parametrics
Z84C0006PEC absolute maximum ratings: (1)Voltage on Vcc with respect to Vss: -0.3V to + 7V; (2)Voltages on ail inputs with respect to Vss: -0.3V to Vcc + 0.3V; (3)Operating Ambient Temperature: See Ordering Information; (4)Storage Temperature: -65℃ to +150℃.
Features
Z84C0006PEC features: (1)NMOS version for low cost high performance solutions, CMOS version for high performance low power designs; (2)NMOS Z0840004 - 4 MHz. Z0840006 - 6.17 MHz, Z0840008 - 8 MHz; (3)CMOS Z84C0006 -DC to 6.17 MHz, Z84C008 - DC to 8 MHz, Z84C0010 - DC to 10 MHz, Z84C0020 - DC -20 MHz; (4)6 MHz version can be operated at 6.144 MHz dock; (5)The Z80 microprocessors and associated family of peripherals can be linked by a vectored inten^ipt system. This system can be daisy-chained to allow knplem-entalion of a priority interrupt scheme; (6)Duplicate set of both general-purpose and flag registers; (7)Two sixteervbit index registers; (8)Three modes of maskable interrupts: Mode 0—8080A similar; Mode 1—Non-Z80 environment, location 38H; Mode 2—Z80 family peripherals, vectored interriupts; (9)On-chip dynamic memory refresh counter.

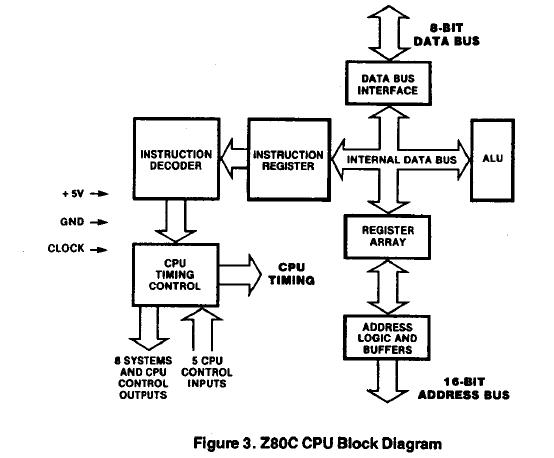

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z84C0006PEC |
ZiLOG |
Microprocessors (MPU) 6MHz Z80 CMOS CPU XT |
Data Sheet |
Negotiable |
|
||||||||||
