24C02N

24C02N, 2K-bit Electrically Erasable PROM, 8-SOIC, 7V, 3mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: 24C02N

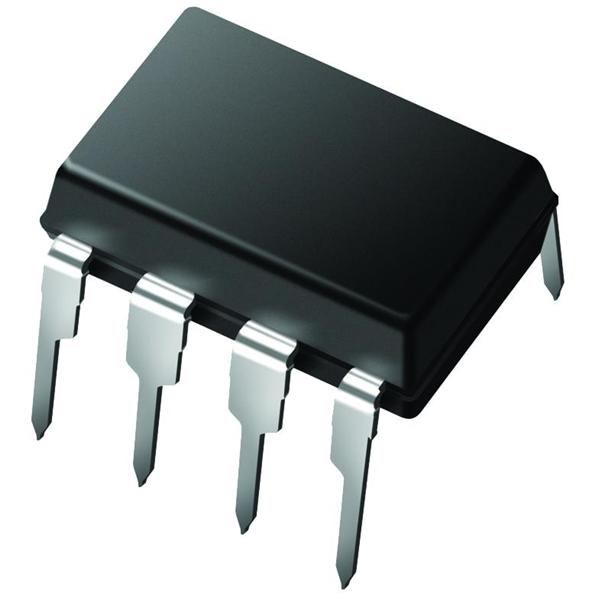

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-07

From Other Seller

Part Number:24C02N
US $0.20 - 1.60
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

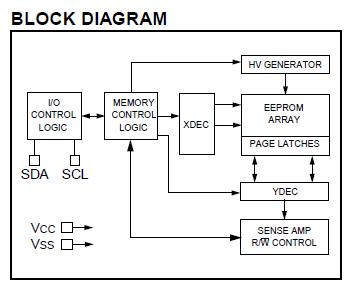

The 24C02N is a 2K-bit Electrically Erasable PROM with bondpad positions optimized for smart card applications. The 24C02N is organized as a single block of 256 x 8-bit memory with a two-wire serial interface. The 24C02N also has page-write capability for up to 8 bytes of data.

Parametrics

24C02N absolute maximum ratings: (1)VCC: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V; (3)Storage temperature: -65℃ to +150℃; (4)Ambient temp. with power applied: -65℃ to +125℃; (5)ESD protection on all pads: ≥ 4 kV.

Features

24C02N features: (1)ISO Standard 7816 pad locations; (2)Low power CMOS technology, 1 mA active current typical; 10μA standby current typical at 5.5V; (3)Organized as a single block of 128 bytes (128 x 8) or 256 bytes (256 x 8); (4)Two-wire serial interface bus, I2C compatible; (5)100 kHz and 400 kHz compatibility; (6)Self-timed write cycle (including auto-erase); (7)Page-write buffer for up to 8 bytes; (8)2 ms typical write cycle time for page-write; (9)ESD protection > 4 kV; (10)1,000,000 E/W cycles guaranteed; (11)Data retention > 200 years; (12)Available for extended temperature ranges, Commercial (C): 0℃ to +70℃.
