Product Summary

The 33063AP1 is a step-up/down/inverting switching regulator. The 33063AP1 is a monolithic control circuit containing the primary functions required for DC-to-DC converter. The device consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. The 33063AP1 was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum number of external components.

Parametrics

33063AP1 absolute maximum ratings: (1)Power Supply Voltage, VCC: 40 Vdc; (2)Comparator Input Voltage Range, VIR: -0.3 to +40 Vdc; (3)Switch Collector Voltage, VC(switch): 40 Vdc; (4)Switch Emitter Voltage (VPin 1 = 40 V), VE(switch): 40 Vdc; (5)Switch Collector to Emitter Voltage, VCE(switch): 40 Vdc; (6)Driver Collector Voltage, VC(driver): 40 Vdc; (7)Driver Collector Current, IC(driver): 100 mA; (8)Switch Current, ISW: 1.5 A; (9)Power Dissipation and Thermal Characteristics Plastic Package, P, P1 Suffix, TA = 25℃, PD: 1.25 W; Thermal Resistance, RθJA: 100℃/W; SOIC Package, D Suffix, TA = 25℃, PD: 625 mW; Thermal Resistance, RθJA: 160℃/W; (10)Operating Junction Temperature, TJ: +150℃; (11)Operating Ambient Temperature Range, TA: -40 to +85℃; (12)Storage Temperature Range, Tstg: -65 to +150℃.

Features

33063AP1 features: (1)Operation from 3.0 V to 40 V Input; (2)Low Standby Current; (3)Current Limiting; (4)Output Switch Current to 1.5 A; (5)Output Voltage Adjustable; (6)Frequency Operation to 100 kHz; (7)Precision 2% Reference; (8)Pb-Free Packages are Available.

Diagrams

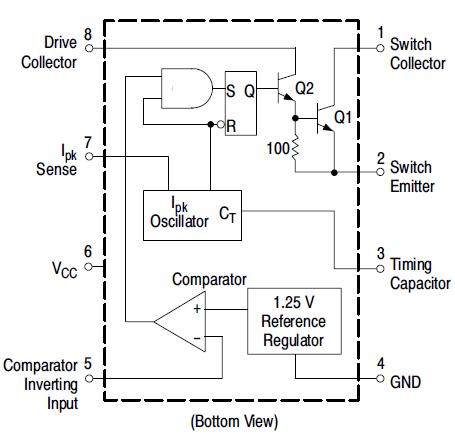

33063AP1 block diagram
