Product Summary
The 74HC02N is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC02N is specified in compliance with JEDEC standard no. 7A. The device provides the 2-input NOR function.
Parametrics
74HC02N absolute maximum ratings: (1)VCC = 4.5 V; (2)input capacitance, CI: 3.5 pF; (3)power dissipation capacitance per gate, CPD: 22pF; (4)VI: GND to VCC.
Features
74HC02N features: (1)Output capability: standard; (2)ICC category: SSI.

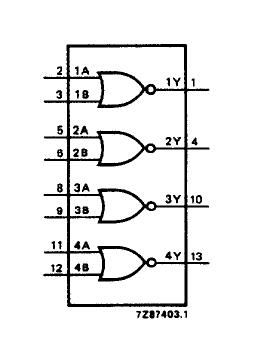

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC02N,652 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-IN NOR GATE |
Data Sheet |
|
|
||||||||||||
