AD1856RZ

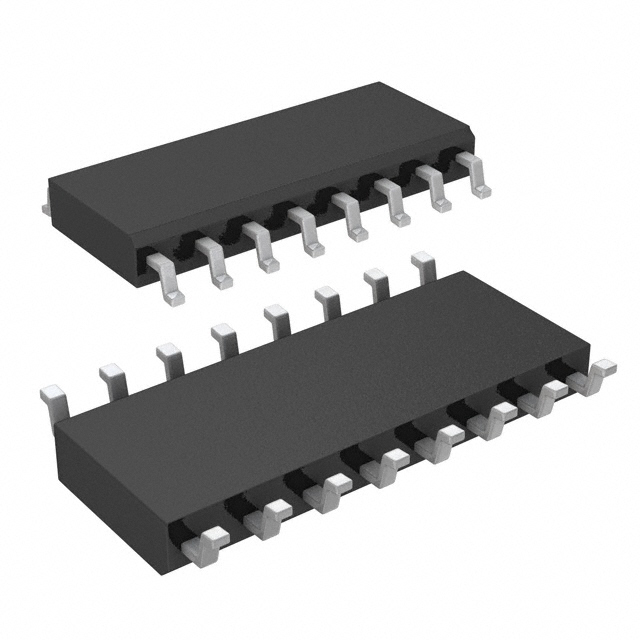

AD1856RZ, single-chip stereo digital audio playback component, SOP16, 6V, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: AD1856RZ

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AD1856RZ
US $0.15 - 2.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD1856RZ-REEL is a complete single-chip stereo digital audio playback component. It comprises an advanced digital interpolation filter, a revolutionary linearity-compensated multibit sigma-delta modulator with dither, a jitter-tolerant DAC, switched capacitor and continuous time analog filters and analog output drive circuitry. Other features include digital de-emphasis processing and mute. The AD1856RZ-REEL supports continuously variable sample rates with essentially linear phase response. The applications of AD1856RZ-REEL include digital cable TV and direct broadcast satellite set-top decoder boxes,video laser disk, video cd and cd-i players, high definition televisions, digital audio broadcast receivers,CD, CD-R, DAT, DCC and MD players,digital audio workstations and computer multimedia products.

Parametrics

AD1856RZ absolute maximum ratings: (1)DVDD to DGND: -0.3 to 6 V; (2)AVDD to AGND: -0.3 to 6 V; (3)Digital Inputs: DGND -0.3 to DVDD +0.3 V; (4)Analog Outputs: AGND -0.3 to AVDD +0.3 V; (5)AGND to DGND: -0.3 to 0.3 V; (6)Reference Voltage: Indefinite Short Circuit to Ground; (7)Soldering: +300℃, 10 sec.

Features

AD1856RZ features: (1)Low Cost, High Performance Stereo DACs; (2)128 Times Oversampling Interpolation Filter; (3)Multibit Modulator with Triangular PDF Dither; (4)Discrete Time and Continuous Time Analog Reconstruction Filters; (5)Extremely Low Out-of-Band Energy; (6)Buffered Outputs with 2 kΩ Output Load Drive; (7)94 dB Dynamic Range, –90 dB THD+N Performance; (8)Digital De-emphasis and Mute; (9)±0.1℃ Maximum Phase Linearity Deviation; (10)Continuously Variable Sample Rate Support; (11)Power-Down Mode; (12)Accepts 24-Bit Word; (13)16-Bit Right-Justified and DSP Serial Port Modes Offered on AD1858; (14)Single +5 V Supply; (15)20-Pin SSOP Package.
