Product Summary
The AD7548JRZ is a precision 12-bit CMOS multiplying DAC designed for direct interface to 4- or 8-bit micropprocessors. The device is manufactured using an advanced thin-film on monolithic COMS fabrication process. Multiplying capability, low power dissipation, +5V operation, small size and easy μP interface make the AD7548JRZ ideal for many instrumentation, industrial control and avionics applications. The applications 8-bit microprocessor based control systems, Programmable amplifiers, Function generation, Servo control.
Parametrics
AD7548JRZ absolute maximum ratings: (1)VDD to DGND: 17V; (2)VREF to AGND: 25V; (3)VRFB to AGND: 25V; (4)Digital input voltage: -0.3V to VDD+0.3V; (5)AGND to DGND: -0.3 to VDD+0.3V; (6)power dissipation: 450mW; (7)operating temperature range: -40 to 85℃; (8)storage temperature range: -65 to 150℃; (9)lead temperature: 300℃.
Features
AD7548JRZ features: (1)8 bit bus compatible 12 bit DAC; (2)All grades 12 bit monotonic over full temperature ranges; (3)operation specified at 5V, 12V or 15V power supply; (4)Low gain drift of 5ppm/℃ maximum; (5)Full 4 quadrant multiplication; (6)Skinny DIP and surface mount packages.

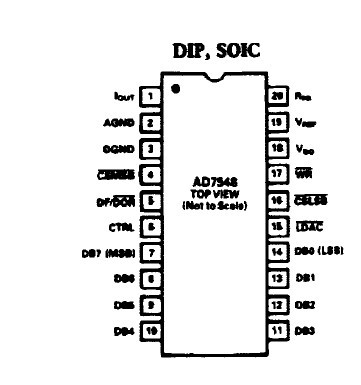

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7548JRZ |
|
IC DAC 12BIT MONO LC2MOS 20SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD7548JRZ-REEL |
|
IC DAC 12BIT MONO LC2MOS 20SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD7548JRZ-REEL7 |
|
IC DAC 12BIT MONO LC2MOS 20SOIC |
Data Sheet |
|
|
||||||||||||||||
