AD7845ARZ

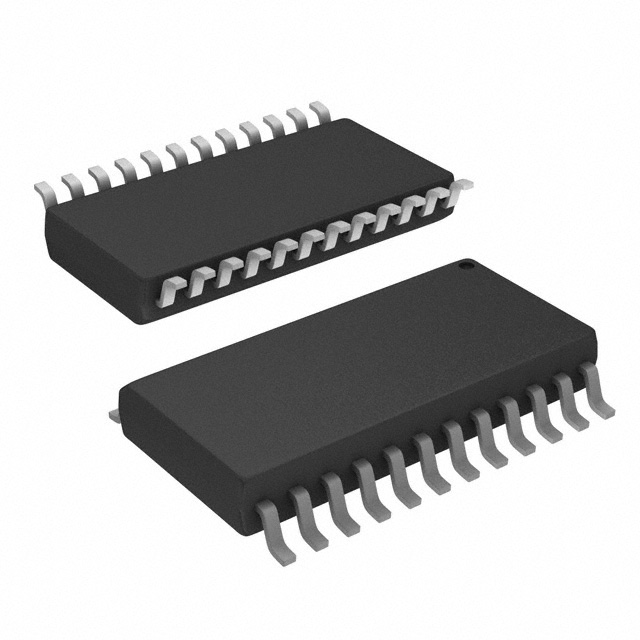

AD7845ARZ, LC2MOS Complete 12-Bit Multiplying DAC, SOP24, 17V, 650mW, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: AD7845ARZ

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AD7845ARZ
US $0.15 - 2.40
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD7845ARZ is a 4-quadrant multiplying D/A converter with an on-chip amplifier. It is fabricated on the LC2MOS process, which allows precision linear components and digital circuitry to be implemented on the same chip. The 12 data inputs drive latches which are controlled by standard CS and WR signals, making microprocessor interfacing simple. The applications of the AD7845ARZ include Automatic Test Equipment, Digital Attenuators, Programmable Power Supplies, Programmable Gain Amplifiers and Digital-to-4–20 mA Converters.

Parametrics

AD7845ARZ absolute maximum ratings: (1)VDD to DGND: -0.3 V to +17 V; (2)VSS to DGND: +0.3 V to -17 V; (3)VREF to AGND: VDD + 0.3 V to VSS -0.3 V; (4)VRFB to AGND: VDD + 0.3 V to VSS -0.3 V; (5)VRA to AGND: VDD + 0.3 V to VSS -0.3 V; (6)VRB to AGND: VDD +0.3 V to VSS -0.3 V; (7)VRC to AGND: VDD +0.3 V to VSS -0.3 V; (8)VOUT to AGND2: VDD + 0.3 V to VSS -0.3 V; (9)AGND to DGND: -0.3 V to VDD; (10)Digital Input Voltage to DGND: -0.3 V to VDD +0.3 V; (11)Power Dissipation (Any Package) To +75℃: 650 mW; Derates above +75℃: 10 mW/℃.

Features

AD7845ARZ features: (1)12-Bit CMOS MDAC with Output Amplifier; (2)4-Quadrant Multiplication; (3)Guaranteed Monotonic (TMIN to TMAX); (4)Space-Saving 0.3" DIPs and 24- or 28-Terminal Surface Mount Packages; (5)Application Resistors On Chip for Gain Ranging, etc; (6)Low Power LC2MOS.
