Product Summary

The ADC10064CIWM is a 10-Bit 600 ns A/D Converter with Input Multiplexer and Sample/Hold. Using an innovative, patented multistep conversion technique, the device offers sub-microsecond conversion times yet dissipate a maximum of only 235 mW. The ADC10064CIWM performs a 10-bit conversion in two lower-resolution “flashes”, thus yielding a fast A/D without the cost, power dissipation, and other problems associated with true flash approaches. The applications of the ADC10064CIWM include Digital signal processor front ends, Instrumentation, Disk drives, Mobile telecommunications.

Parametrics

ADC10064CIWM absolute maximum ratings: (1)Supply Voltage (V+ = AVCC = DVCC): -0.3V to +6V; (2)Voltage at Any Input or Output: -0.3V to V+ + 0.3V; (3)Input Current at Any Pin (Note 3): 5 mA; (4)Package Input Current (Note 3): 20 mA; (5)Power Dissipation (Note 4): 875 mW; (6)ESD Susceptability (Note 5): 2000V; (7)Soldering Information (Note 6), Vapor Phase (60 Sec): 215℃; Infrared (15 Sec): 220℃.

Features

ADC10064CIWM features: (1)Built-in sample-and-hold; (2)Single +5V supply; (3)1, 2, or 4-input multiplexer options; (4)No external clock required; (5)Speed adjust pin for faster conversions (ADC10062 and ADC10064). See ADC10662/4 for high speed guaranteed performance.

Diagrams

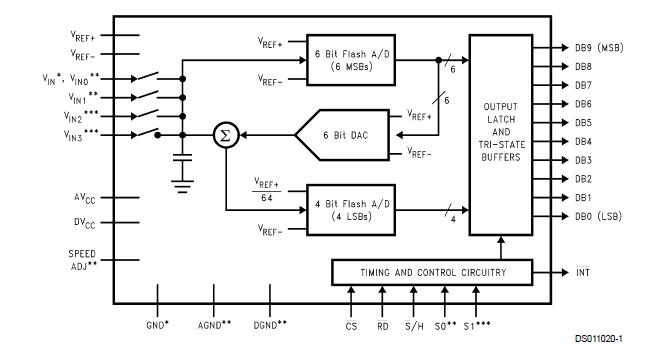

ADC10064CIWM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADC10064CIWM
ADC10064CIWM
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-104: $3.56
104-260: $3.10
260-520: $2.98
520-1014: $2.87
