Product Summary

The ADG408BRZ is a monolithic CMOS analog multiplexer comprising eight single channels and four differential channels respectively. The ADG408BRZ switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1 and A2. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched OFF. The applications of the ADG408BRZ include Audio and Video Routing, Automatic Test Equipment, Data Acquisition Systems, Battery Powered Systems, Sample and Hold Systems, Communication Systems.

Parametrics

ADG408BRZ absolute maximum ratings: (1)VDD to VSS: +44 V; (2)VDD to GND: -0.3 V to +25 V; (3)VSS to GND: +0.3 V to –25 V; (4)Analog, Digital Inputs2: VSS –2 V to VDD +2 V or 20 mA, Whichever Occurs First; (5)Continuous Current, S or D: 20 mA; (6)Peak Current, S or D (Pulsed at 1 ms, 10% Duty Cycle max): 40 mA; (7)Operating Temperature Range, Industrial (B Version): -40℃ to +85℃; (8)Extended (T Version): -55℃ to +125℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature: +150℃.

Features

ADG408BRZ features: (1)44 V Supply Maximum Ratings; (2)VSS to VDD Analog Signal Range; (3)Low On Resistance (100 V max); (4)Low Power (ISUPPLY < 75 mA); (5)Fast Switching; (6)Break-Before-Make Switching Action; (7)Plug-in Replacement for DG408/DG409.

Diagrams

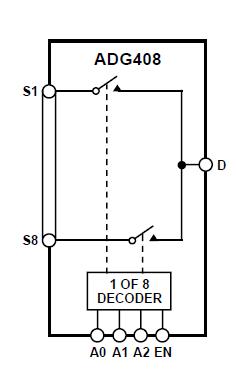

ADG408BRZ block diagram
