Product Summary

The ADG719BRM is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents. The ADG719BRM can operate from a single-supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc. Each switch of the ADG719BRM conducts equally well in both directions when on. The ADG719 exhibits break-before-make switching action.

Parametrics

ADG719BRM absolute maximum ratings: (1)VDD to GND: －0.3 V to +7 V; (2)Continuous Current, S or D: 30 mA; (3)Operating Temperature Range: －40℃to +125℃; (4)Storage Temperature Range: －65℃to +150℃; (5)Junction Temperature: 150℃.

Features

ADG719BRM features: (1)1.8 V to 5.5 V single supply; (2)4 Ω (max)on resistance; (3)0.75 Ω (typ)on resistance flatness; (4)−3 dB bandwidth > 200 MHz; (5)Rail-to-rail operation; (6)6-Lead SOT-23 package and 8-Lead MSOP package.

Diagrams

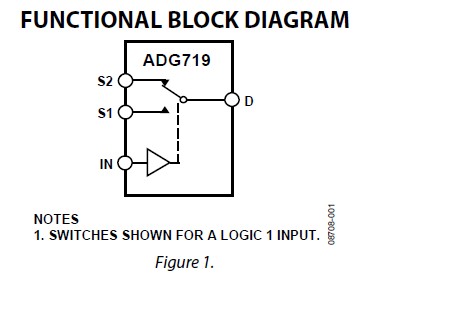

ADG719BRM pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG719BRM
ADG719BRM

IC SWITCH SPDT 8MSOP
