Product Summary

The ADM1022ARQZ is a low cost temperature monitor and fan controller for microprocessor-based systems. The temperature of one or two remote sensor diodes may be measured, allowing monitoring of processor temperature in single- or dual-processor systems. Measured values can be read out via a serial System Management Bus, and values for limit comparisons can be programmed in over the same serial bus. The ADM1022ARQZ also contains a DAC for fan speed control. Automatic hardware temperature trip points are provided and the fan will be driven to full speed if they are exceeded.

Parametrics

ADM1022ARQZ absolute maximum ratings: (1)Positive Supply Voltage (VCC): 6.5 V; (2)Voltage On Digital Inputs Except Therm: -0.3 V to +6.5 V; (3)Voltage On Therm Pin: -0.3 V to VCC + 0.3 V; (4)Input Current at Any Pin: ±5 mA; (5)Package Input Current: ±20 mA; (6)Maximum Junction Temperature (TJ max): 150℃; (7)Storage Temperature Range: -65℃ to +150℃.

Features

ADM1022ARQZ features: (1)On-Chip Temperature Sensor; (2)Interrupt and Over-Temperature Outputs; (3)Fault Tolerant Fan Control; (4)Brownout Detection; (5)LDCM Support; (6)System Management Bus (SMBus); (7)Standby Mode to Minimize Power Consumption; (8)Limit Comparison of all Monitored Values.

Diagrams

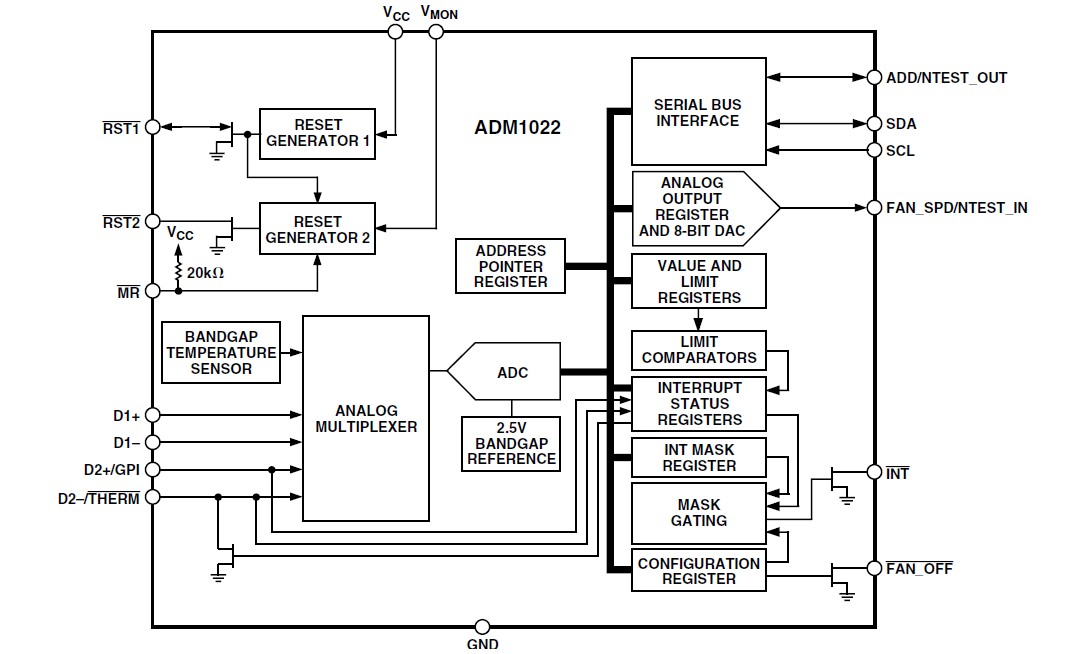

 ADM1022ARQZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADM1022ARQZ
ADM1022ARQZ


IC SENSOR TEMP/DET 3/5.5V 16QSOP

Data Sheet

Negotiable
ADM1022ARQZ-R7
ADM1022ARQZ-R7


IC SENSOR TEMP/DET 3/5.5V 16QSOP

Data Sheet

Negotiable
ADM1022ARQZ-REEL
ADM1022ARQZ-REEL


IC SENSOR TEMP/DET 3/5.5V 16QSOP

Data Sheet

Negotiable
ADM1022ARQZ-REEL7
ADM1022ARQZ-REEL7


IC SENSOR TEMP/DET 3/5.5V 16QSOP

Data Sheet

Negotiable
