Product Summary
The ADM207ARSZ is a robust RS-232 and V.28 interface device that operates from a single +5 V power supply. The ADM207ARSZ is suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC (89/336/ EEC). The level of emissions and immunity are both in compliance. EM immunity includes ESD protection in excess of ±15 kV on all I-O lines (1000-4-2), Fast Transient Burst protection (1000- 4-4) and Radiated Immunity (1000-4-3). EM emissions include radiated and conducted emissions as required by Information Technology Equipment EN55022, CISPR22. The ADM207ARSZ fully conform to the EIA-232E and CCITT V.28 specifications and operate at data rates up to 230 kbps.
Parametrics
ADM207ARSZ absolute maximum ratings: (1)VCC: －0.3 V to +6 V; (2)V+: (VCC －0.3 V)to +14 V; (3)V－: +0.3 V to －14 V; (4)ESD Rating (IEC1000-4-2 Air)(I-O Pins): ±15 kV; (5)ESD Rating (IEC1000-4-2 Contact)(I-O Pins): ±8 kV; (6)EFT Rating (IEC1000-4-4)(I-O Pins): ±2 kV.
Features
ADM207ARSZ features: (1)Complies with 89/336/EEC EMC Directive; (2)ESD Protection to IEC1000-4-2 (801.2); (3)68 kV: Contact Discharge; (4)615 kV: Air-Gap Discharge; (5)615 kV: Human Body Model; (6)Fast Transient Burst (EFT)Immunity (IEC1000-4-4); (7)Low EMI Emissions (EN55022); (8)Eliminates Costly TranZorbs*; (9)460 kbits/s Data Rate Guaranteed; (10)Single +5 V Power Supply; (11)Shutdown Mode 1 mW; (12)Plug-In Upgrade for MAX2xxE; (13)Space Saving TSSOP Package Available.

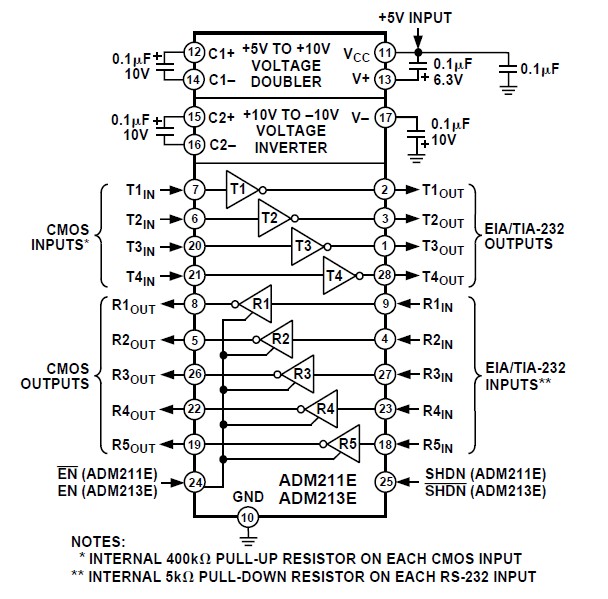

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM207ARSZ |
|

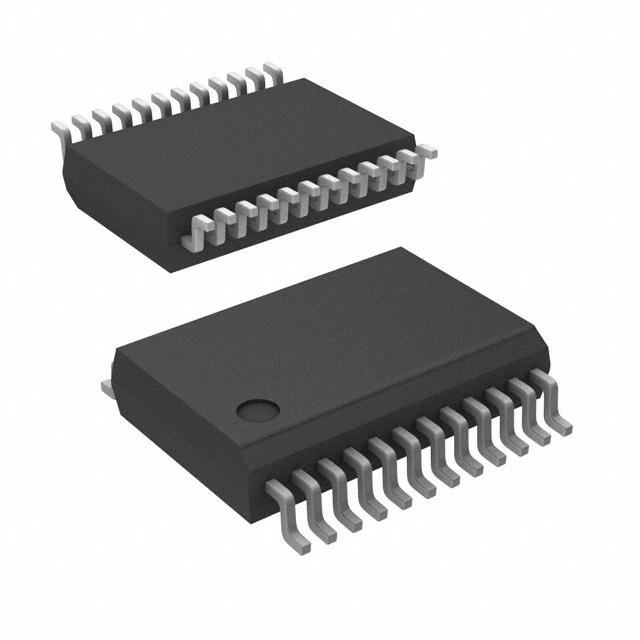

IC TXRX RS232 5DVR/3REC 24SSOP |
Data Sheet |
|
|
||||||
|
ADM207ARSZ-REEL |
|
IC TXRX RS232 5DVR/3REC 24SSOP |
Data Sheet |
|
|
||||||
