Product Summary

The ADM696AR is a microprocessor supervisory circuit. Its applications include Microprocessor Systems, Computers, Controllers, Intelligent Instruments, Automotive Systems, Critical mP Power Monitoring.

Parametrics

ADM696AR absolute maximum ratings: (1)VCC: -0.3 to 6V; (2)input current: 200mA; (3)digital output current: 20mA; (4)thermal impedance: 100℃/W; (5)power dissipation: 600mW.

Features

ADM696AR features: (1)Watchdog Timer—100 ms, 1.6 s, or Adjustable; (2)Low Switch On Resistance; (3)1.5 V Normal, 20 V in Backup; (4)600 nA Standby Current; (5)Automatic Battery Backup Switching (ADM696); (6)Fast On-Board Gating of Chip Enable Signals (ADM697); (7)Voltage Monitor for Power Fail or Low Battery Warning.

Diagrams

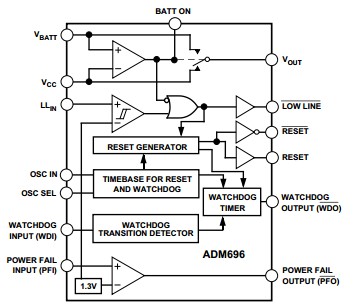

ADM696AR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

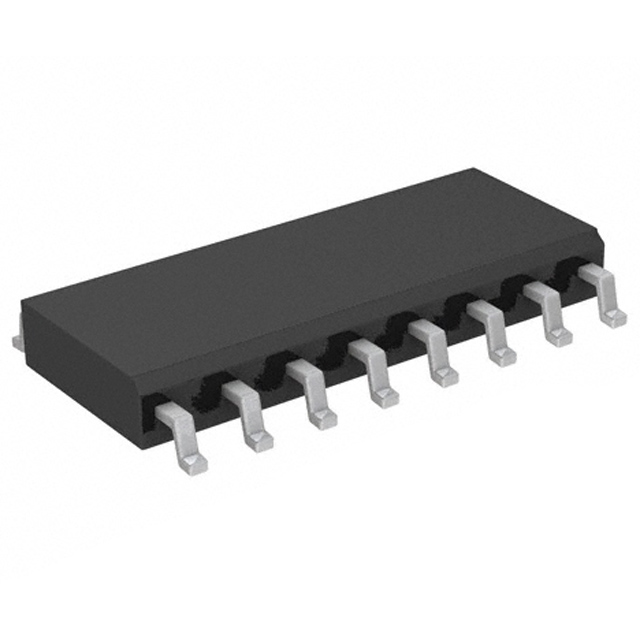

ADM696AR
ADM696AR

IC SUPERVISOR MPU 100MA 16SOIC
Data Sheet
