Product Summary

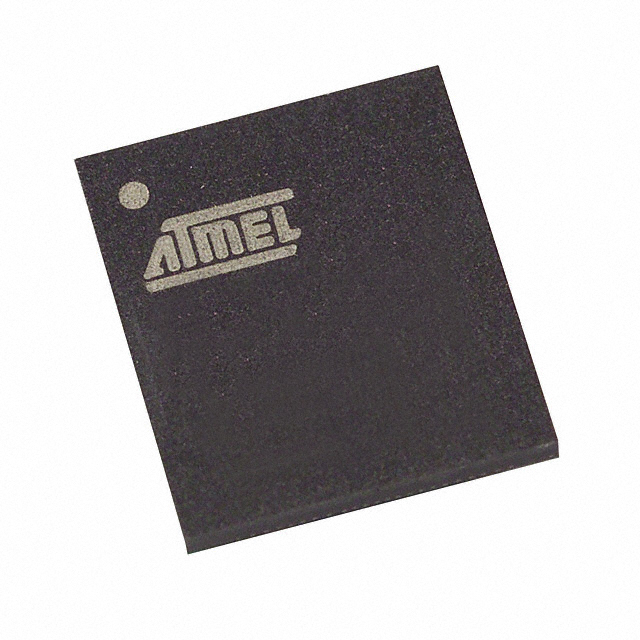

The AT49BV160DT-70CU is a 3V only flash memory. It can be read or reprogrammed using a single power supply, making it ideally suited for in-system programming.
Parametrics
AT49BV160DT-70CU absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage with respect to ground: -0.6 to 6.25V; (4)all output voltage with respect to ground: -0.6 to VCC+0.6V; (5)voltage on VPP with respect to ground: -0.6 to 10V.
Features
AT49BV160DT-70CU features: (1)single voltage read/write operation: 2.65V to 3.6V; (2)access time-70ns; (3)sector erase architecture; (4)fast word program time-10μs; (5)suspend/resume feature for erase and program.

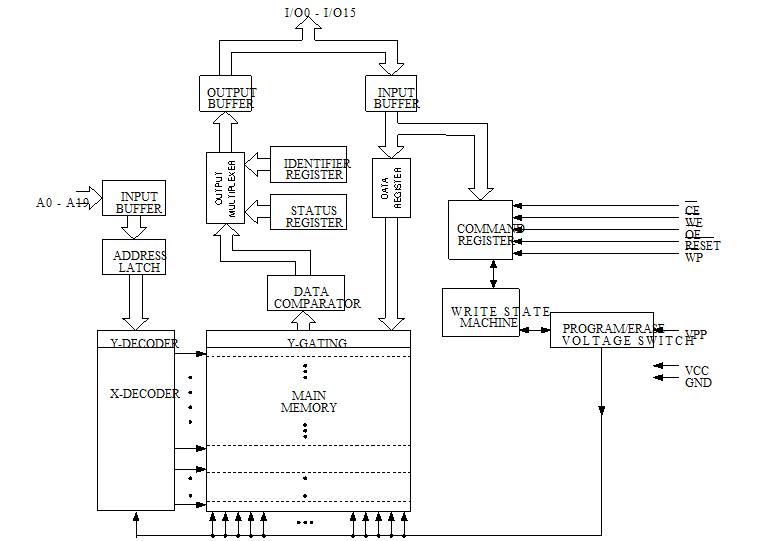

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

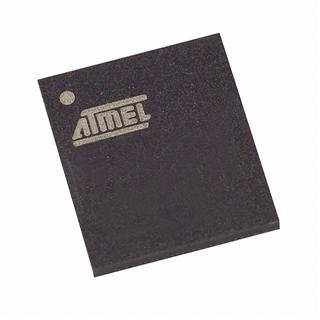

 AT49BV160DT-70CU |
Atmel |
Flash 16M 3V ASYNC BTTM BT-70NS BTTM BT |
Data Sheet |
Negotiable |
|
||||||||||||
