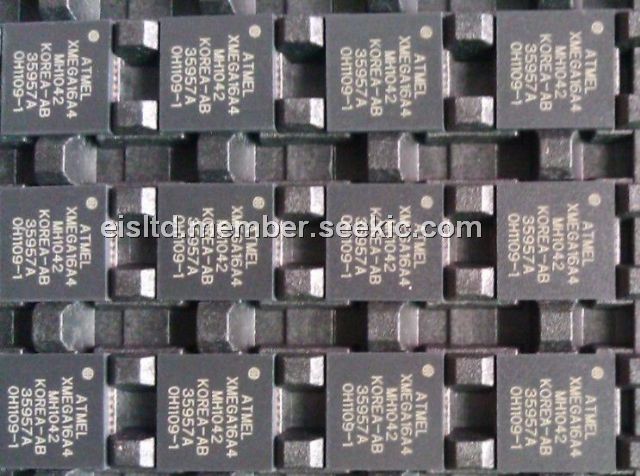

ATXMEGA16A4-MH

Product Summary

The ATXMEGA16A4-MH is a low power, high performance and peripheral rich CMOS 8/16-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the XMEGA A4 achieves throughputs approaching 1 Million Instructions Per Second (MIPS) per MHz allowing the system designer to optimize power consumption versus processing speed. The applications of the ATXMEGA16A4-MH include Industrial control, Climate control, Hand-held battery applications, Factory automation, ZigBee, Power tools, Building control, Motor control, HVAC, Board control, Networking, Metering, White Goods, Optical, Medical Applications.

Parametrics

ATXMEGA16A4-MH absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Operating Temperature: -55℃ to +125℃; (3)Voltage on any Pin with respect to Ground: -0.5V to VCC+0.5V; (4)Maximum Operating Voltage: 3.6V; (5)DC Current per I/O Pin: 20.0 mA; (6)DC Current VCC and GND Pins: 200.0 mA.

Features

ATXMEGA16A4-MH features: (1)High-performance, Low-power 8/16-bit Atmel AVR XMEGA Microcontroller; (2)Non-volatile Program and Data Memories: 16 KB - 128 KB of In-System Self-Programmable Flash; 4 KB - 8 KB Boot Code Section with Independent Lock Bits; 1 KB - 2 KB EEPROM; 2 KB - 8 KB Internal SRAM; (3)Peripheral Features, Four-channel DMA Controller with support for external requests; Eight-channel Event System; Five 16-bit Timer/Counters; Five USARTs IrDA Extension on one USART; Two Two-Wire Interfaces with dual address match (I2C and SMBus compatible); Two SPIs (Serial Peripheral Interfaces) peripherals; AES and DES Crypto Engine; 16-bit Real Time Counter with Separate Oscillator; One Twelve-channel, 12-bit, 2 Msps Analog to Digital Converter; One Two-channel, 12-bit, 1 Msps Digital to Analog Converter; Two Analog Comparators with Window compare function; External Interrupts on all General Purpose I/O pins; Programmable Watchdog Timer with Separate On-chip Ultra Low Power Oscillator; (4)Special Microcontroller Features, Power-on Reset and Programmable Brown-out Detection; Internal and External Clock Options with PLL; Programmable Multi-level Interrupt Controller; Sleep Modes: Idle, Power-down, Standby, Power-save, Extended Standby; Advanced Programming, Test and Debugging Interfaces PDI (Program and Debug Interface) for programming, test and debugging; (5)I/O and Packages, 34 Programmable I/O Lines; 44 - lead TQFP; 44 - pad VQFN/QFN; 49 - ball VFBGA; (6)Operating Voltage, 1.6-3.6V; (7)Speed performance, 0-12 MHz @ 1.6-3.6V; 0-32 MHz @ 2.7-3.6V.

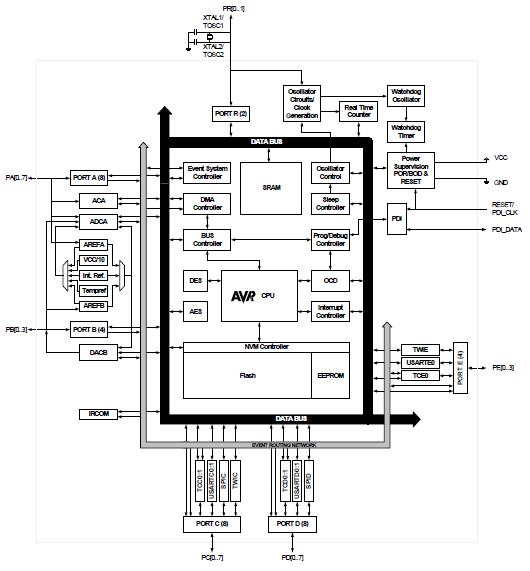

Diagrams
