Product Summary

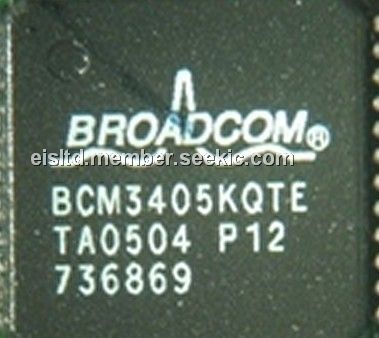

The BCM3405KQTEG is a highly integrated silicon tuner. The BCM3405KQTEG containing an LNA and the RF AGC, is the companion part to it. This two-chip solution supports both 64-QAM and 256-QAM digital cable modem applications. The device is specifically designed to work with Broadcom’s industry-leading BCM3345, BCM3360, BCM3348, and BCM3250 single-chip cable modems, and form an attractive alternative to traditional can tuners in any cable modem design. The BCM3405KQTEG supports an IF output frequency range of 36 MHz through 44 MHz and specifically supports the 36.125 MHz and 43.75 MHz center frequencies for the PAL and NTSC standards. The applications of the BCM3405KQTEG include Cable modems, Cable set-top boxes.
Parametrics
BCM3405KQTEG absolute maximum ratings: (1)Input frequency range: 50 MHz to 860 MHz; (2)IF output range: 36 MHz to 44 MHz; (3)Supply current: 3.3V.
Features
BCM3405KQTEG features: (1)Supports 64 and 256 QAM; (2)Input frequency range of 50 MHz through 860 MHz; (3)IF output range of 36 MHz through 44 MHz; (4)High linearity across entire frequency range; (5)Differential signals for high noise immunity; (6)Eliminates need for image reject mixer; (7)Highly integrated and cost-effective: Minimal BOM with reference designs available; IF AGC and frequency synthesizers included; Standard logic CMOS with single 3.3V supply; 48-pin TQFP.
Diagrams
 |
