BTM7751G

Product Summary

The BTM7751G is part of the TrilithIC family containing three dies in one package: One double high-side switch and two low-side switches. The drains of these three vertical DMOS chips are mounted on separated lead frames. The sources are connected to individual pins, so the BTM7751G can be used in H-bridge- as well as in any other onfiguration. Both the double high-side and the two low-side switches of the BTM7751G are manufactured in SMART SIPMOS technology which combines low Rds on vertical DMOS power stages with CMOS circuitry for control, protection and diagnosis.

Parametrics

BTM7751G absolute maximum ratings: (1) High-Side-Switches (Pins DHVS, IH1,2 and SH1,2) : a) Supply voltage (Vs) : -0.3 to 42V; b) Supply voltage for full short circuit protection (Vsscp) : 28V; c) HS-drain current (Is) : -7A (Ta=25°C; tp<100 ms; d) HS-input current (Iih) : -5 to 5mA (Pin IH1 and IH) ; e) HS-input voltage (Vih) : -10 to 16V (VPin IH1 and IH) ; (2) Status Output ST: a) Status pull up voltage (Vst) : -0.3 to 5.4V; b) Status Output current (Ist) : -5 to 5mA (Pin ST) ; (3) Low-Side-Switches (Pins DL1, 2, IL1, 2 and SL1, 2) : a) Drain-Source-Clamp voltage (Vdsl: 42V (V =0V; Id≤ 1mA) ; b) Supply voltage for short circuit protection: Vdsl (scp) : 30V (Vil=5V) , 20V (Vil=10V) ; c) LS-drain current: Idl : -7A (Ta= 25°C; tp < 100 ms); d) LS-input voltage (Vil) : -0.3 to 10V; (3) Temperatures (Tj) : -40 to 150°C ,Storage temperature: -55 to 150°C; (4) ESD Protection: Input LS-Switch (Vesd) : 2kV, Input HS-Switch: 1kV, Status HS-Switch (Vesd) : 1kV, Output LS and HS-Switch: 8kV (Vall other pins connected to Ground) .

Features

BTM7751G features: (1) Quad D-MOS switch driver; (2) Free configurable as bridge or quad-switch; (3) Optimized for DC motor management applications; (4) Low Rds on Higf side: 110 mΩ typ. @25°C, 270 mΩ max. @150°C, Low side: 100 mΩ typ. @25°C, 230 mΩ max. @150°C; (5) Peak current: typ. 8A @ 25°C; (6) Very low quiescent current: typ. 5 μA @ 25°C; (7) Small outline, enhanced power PG-DSO-package; (8) Operates up to 40 V; (9) PWM frequencies up to 1kHz; (10) Status flag diagnosis; (11) Short-circuit-protection; (12) Overtemperature shut down with hysteresis; (13) Internal clamp diodes; (14) Under-voltage detection with hysteresis; (15) Green Product (RoHS compliant) ; (16) AEC Qualified.

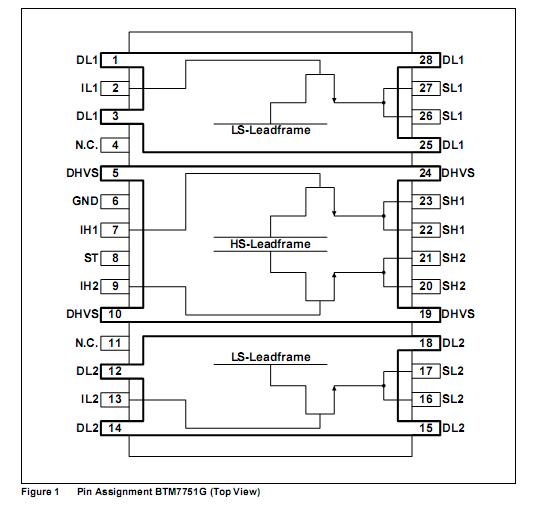

Diagrams
