Product Summary

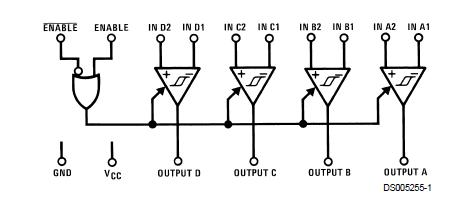

The DS26LS32ACN is a quad differential line receiver, designed to meet the RS-422, RS-423 and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission. The DS26LS32ACN has an input sensitivity of 200 mV over the input voltage range of ±7V. The device differ in function from the popular DS26LS32ACN in that input pull-up and pull-down resistors are included which prevent output oscillation on unused channels. Each version provides an enable and disable function common to all four receivers and features TRI-STATE outputs with 8 mA sink capability. Constructed using low power Schottky processing, the device is available over the full military and commerical operating temperature ranges.

Parametrics

DS26LS32ACN absolute maximum ratings: (1)Supply Voltage: 7V; (2)Common-Mode Range: ±25V; (3)Differential Input Voltage: ±25V; (4)Enable Voltage: 7V; (5)Output Sink Current: 50 mA; (6)Maximum Power Dissipation at 25℃, Cavity Package: 1433 mW; Molded Dip Package: 1362 mW; DS26LS32A: 1051 mW; (7)Storage Temperature Range: -65℃ to +165℃; (8)Lead Temperature (Soldering, 4 seconds): 260℃.

Features

DS26LS32ACN features: (1)High differential or common-mode input voltage ranges of ±7V on the DS26LS32 and DS26LS32A and ±15V on the DS26LS33; (2)±0.2V sensitivity over the input voltage range on the DS26LS32 and DS26LS32A, ±0.5V sensitivity on the DS26LS33; (3)DS26LS32 and DS26LS32A meet all requirements of RS-422 and RS-423; (4)6k minimum input impedance; (5)100 mV input hysteresis on the DS26LS32 and DS26LS32A, 200 mV on the DS26LS33; (6)Operation from a single 5V supply; (7)TRI-STATE outputs, with choice of complementary output enables for receiving directly onto a data bus.
