LM239J

Product Summary

The LM239J is a low power low offset voltage quad comparator with an offset voltage specification as low as 2 mV max for all four comparators. The LM239J was designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The LM239J also has a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage. Application areas include limit comparators, simple analog to digital converters; pulse, squarewave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates.

Parametrics

LM239J absolute maximum ratings: (1)Supply Voltage, V+: 28 VDC or ±14 VDC; (2)Differential Input Voltage: 28 VDC; (3)Input Voltage: -0.3 VDC to +28 VDC; (4)Input Current (VIN<.0.3 VDC): 50 mA; (5)Power Dissipation, Molded DIP: 1050 mW; Cavity DIP: 1190 mW; Small Outline Package: 760 mW; (6)Output Short-Circuit to GND: Continuous; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 seconds): 260℃; (9)Operating Temperature Range: -25℃ to +85℃; (10)Dual-In-Line Package Soldering (10 seconds): 260℃; (11)Small Outline Package Vapor Phase (60 seconds): 215℃; Infrared (15 seconds): 220℃; (12)ESD rating (1.5 kΩ in series with 100 pF): 600V.

Features

LM239J features: (1)Wide supply voltage range; (2)LM139/139A Series, 2 to 36 VDC or ±1 to ±18 VDC; (3)LM2901: 2 to 36 VDC or ±1 to ±18 VDC; (4)LM3302: 2 to 28 VDC or ±1 to ±14 VDC; (5)Very low supply current drain (0.8 mA) - independent of supply voltage; (6)Low input biasing current: 25 nA; (7)Low input offset current: ±5 nA; (8)Offset voltage: ±3 mV; (9)Input common-mode voltage range includes GND; (10)Differential input voltage range equal to the power supply voltage; (11)Low output saturation voltage: 250 mV at 4 mA; (12)Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems.

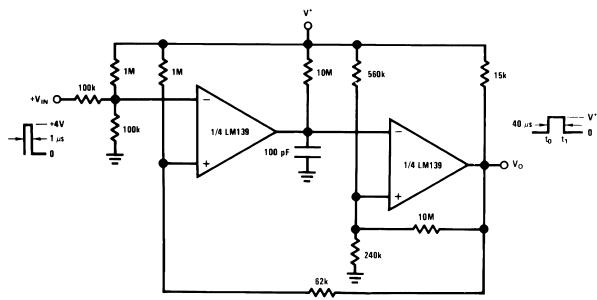

Diagrams
