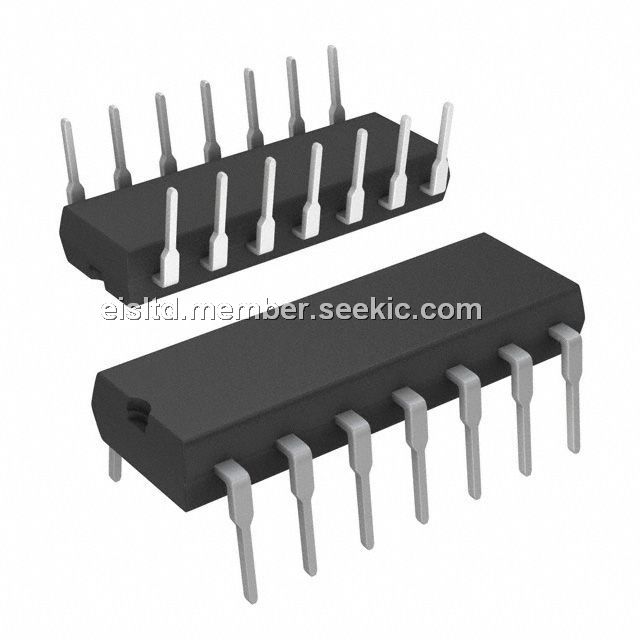

LM380N

LM380N, Audio Power Amplifier, 14-DIP, 22V, 1.3A, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: LM380N

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-08

From Other Seller

Part Number:LM380N
US $0.20 - 1.60
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM380N is a power audio amplifier for consumer application. In order to hold system cost to a minimum, gain is internally fixed at 34 dB. A unique input stage allows inputs to be ground referenced. The output is automatically self centering to one half the supply voltage. The output is short circuit proof with internal thermal limiting. The package outline is standard dual-in-line. A copper lead frame is used with the center three pins on either side comprising a heat sink. This makes the LM380N easy to use in standard p-c layout. The applications of the LM380N include simple phonograph amplifiers, intercoms, line drivers, teaching machine outputs, alarms, ultrasonic drivers, TV sound systems, AM-FM radio, small servo drivers, power converters, etc.

Parametrics

LM380N absolute maximum ratings: (1)Supply Voltage: 22V; (2)Peak Current: 1.3A; (3)Package Dissipation 14-Pin DIP: 8.3W; (4)Package Dissipation 8-Pin DIP: 1.67W; (5)Input Voltage: ±0.5V; (6)Storage Temperature: -65℃ to +150℃; (7)Operating Temperature: 0℃ to +70℃; (8)Junction Temperature: +150℃; (9)Lead Temperature (Soldering, 10 sec.): +260℃ ESD rating to be determined ; (10)Thermal Resistance, θJC (14-Pin DIP): 30℃/W; θJC (8-Pin DIP): 37℃/W; θJA (14-Pin DIP): 79℃/W; θJA (8-Pin DIP): 107℃/W.

Features

LM380N features: (1)Wide supply voltage range; (2)Low quiescent power drain; (3)Voltage gain fixed at 50; (4)High peak current capability; (5)Input referenced to GND; (6)High input impedance; (7)Low distortion; (8)Quiescent output voltage is at one-half of the supply voltage; (9)Standard dual-in-line package.
