Product Summary

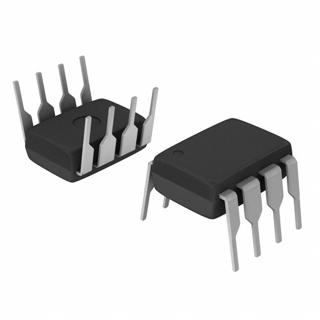

The LP2951CN is a micropower voltage regulator with very low quiescent current (75μA typ.) and very low dropout voltage (typ. 40mV at light loads and 380mV at 100mA). The device is ideally suited for use in battery-powered systems. Furthermore, the quiescent current of the LP2951CN increases only slightly in dropout, prolonging battery life. The 8-lead LP2951CN is available in plastic, ceramic dual-in-line, LLP, or metal can packages and offers additional system functions.
Parametrics
LP2951CN absolute maximum ratings: (1)Input Supply Voltage: -0.3 to +30V; (2)SHUTDOWN Input Voltage, Error Comparator Output Voltage, (Note 9); (3)FEEDBACK Input Voltage: -1.5 to +30V; (4)Power Dissipation: Internally Limited; (5)Junction Temperature (TJ): +150℃; (6)Ambient Storage Temperature: -65℃ to +150℃.
Features
LP2951CN features: (1)5V, 3V, and 3.3V versions available; (2)High accuracy output voltage; (3)Guaranteed 100mA output current; (4)Extremely low quiescent current; (5)Low dropout voltage; (6)Extremely tight load and line regulation; (7)Very low temperature coefficient; (8)Use as Regulator or Reference; (9)Needs minimum capacitance for stability; (10)Current and Thermal Limiting; (11)Stable with low-ESR output capacitors (10mΩ to 6Ω).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LP2951CN |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
|
LP2951CN/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators POS ADJ LDO |
Data Sheet |
|
|
||||||||||||
|
LP2951CN-3.0G |
ON Semiconductor |
Low Dropout (LDO) Regulators ANA 100mA 3V LDO VREG |
Data Sheet |
|
|
||||||||||||
|
LP2951CN-3.3 |
ON Semiconductor |
Low Dropout (LDO) Regulators 3.3V 100mA Low Power |
Data Sheet |
Negotiable |
|
||||||||||||
|
LP2951CN-3.0 |
ON Semiconductor |
Low Dropout (LDO) Regulators 3V 100mA Low Power |
Data Sheet |
Negotiable |
|
||||||||||||
 |
LP2951CN-3.0/NOPB |
|
IC REG LDO 3V .1A 8-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
LP2951CN-3.3G |
ON Semiconductor |
Low Dropout (LDO) Regulators ANA 100mA 3.3V LDO VREG |
Data Sheet |
|
|
||||||||||||
|
LP2951CNG |
ON Semiconductor |
Low Dropout (LDO) Regulators 1.23-30V or 5V 100mA Low Power |
Data Sheet |
|
|
||||||||||||
