Product Summary
The LT1058ISW#TR is a matched JFET input dual op amp in the industry standard 8-pin configuration, featuring a combination of outstanding high speed and precision specifications. It replaces all the popular bipolar and JFET input dual op amps. In particular, the LT1058ISW#TR upgrades the performance of systems using the LF412A and OP-215 JFET input duals. The applications of the LT1058ISW#TR include Precision, High Speed Instrumentation, Fast, Precision Sample-and-Hold, Logarithmic Amplifiers, D/A Output Amplifiers, Photodiode Amplifiers, Voltage-to-Frequency Converters, Frequency-to-Voltage Converters.
Parametrics
LT1058ISW#TR absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Differential Input Voltage: ±40V; (3)Input Voltage: ±20V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1058ISW#TR features: (1)14V/μs Slew Rate: 10V/μs Min; (2)5MHz Gain-Bandwidth Product; (3)Fast Settling Time: 1.3μs to 0.02%; (4)150μV Offset Voltage (LT1057): 450μV Max; (5)180μV Offset Voltage (LT1058): 600μV Max; (6)2μV/℃ VOS Drift: 7μV/℃ Max; (7)50pA Bias Current at 70℃; (8)Low Voltage Noise: 13nV/√Hz at 1kHz; 26nV/√Hz at 10Hz.

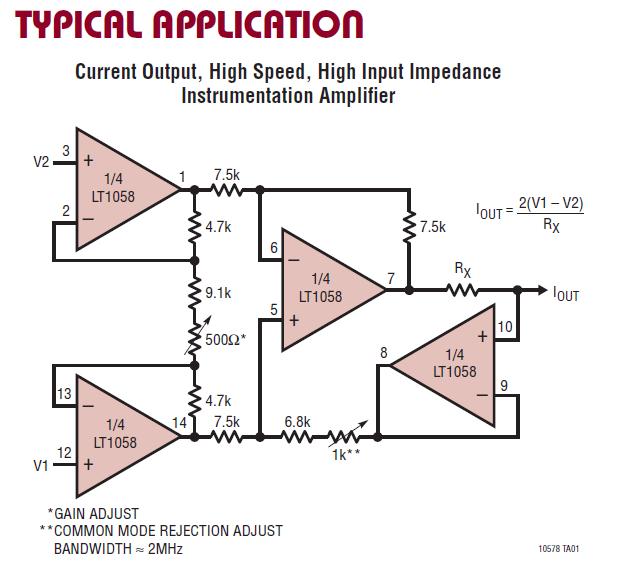

Diagrams

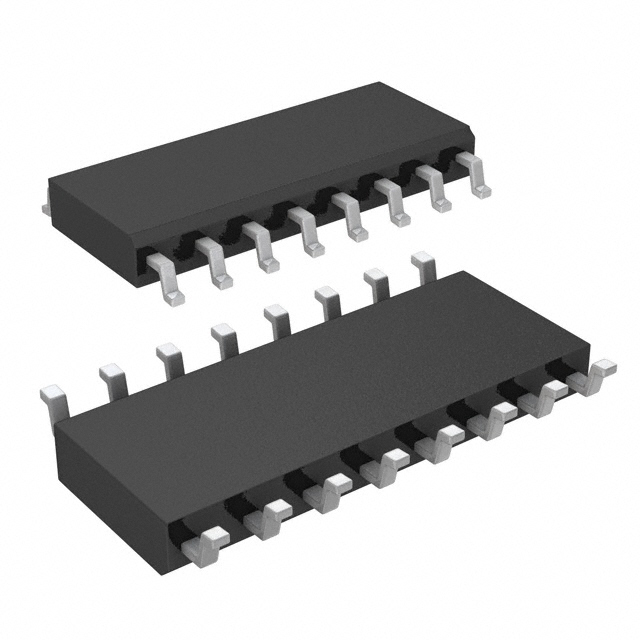

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1058ISW#TR |
|
IC OPAMP JFET PREC QUAD 16SOIC |
Data Sheet |
|
|
||||||
|
LT1058ISW#TRPBF |
|
IC PREC OP-AMP JFET QUAD 16SOIC |
Data Sheet |
|
|
||||||
