Product Summary
The LT1077IS8#TR is a micropower precision operational amplifier optimized for single supply operation at 5V. In addition, ±15V specifications are provided. Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed, and output drive specifications. The LT1077IS8#TR reduces supply current without sacrificing other parameters. The offset voltage achieved is the lowest of any micropower op amp. The applications of the LT1077IS8#TR include Replaces OP-07, OP-77, AD707, LT1001, LT1O12 at 10 to 60 Times Lower Power, Battery or Solar Powered Systems, 4mA to 2OmA Current Loops, Two Terminal Current Source, Megaohm Source Resistance Difference Amplifier.
Parametrics
LT1077IS8#TR absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: Equal to Positive Supply Voltage; (4)Input Voltage: 5V Below Negative Supply Voltage; (5)Output Short-Circuit Duration: Indefinite.
Features
LT1077IS8#TR features: (1)60μA Max Supply Current; (2)40μV Max Offset Voltage; (3)350pA Max Offset Current; (4)0.5μVP-P 0.1Hz to 10Hz Voltage Noise; (5)2.5pAP-P 0.1Hz to 10Hz Current Noise; (6)O.4μV/℃ Offset Voltage Drift; (7)250kHz Gain-Bandwidth Product; (8)0.12V/μs Slew Rate; (9)Single Supply Operation Input Voltage Range Includes Ground Output Swings to Ground while Sinking Current No Pull-Down Resistors are Needed; (10)Output Sources and Sinks 5mA Load Current.

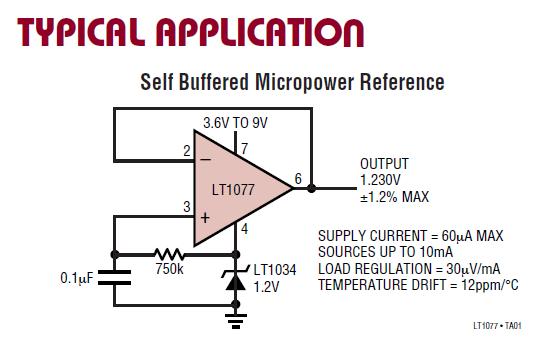

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1077IS8#TR |
|
IC OPAMP PREC SGL MICROPWR 8SOIC |
Data Sheet |
|
|
||||||
|
LT1077IS8#TRPBF |
|
IC PREC OP-AMP MCRPWR SNGL 8SOIC |
Data Sheet |
|
|
||||||
