Product Summary
The LT1204CSW#TR is a 4-input video multiplexer with 75MHz current feedback amplifier. wide bandwidth, high slew rate, and low differential gain and phase make the LT1204CSW#TR ideal for broadcast quality signal routing. Its applications include broadcast quality video multiplexing, large maxtrix routing, medical imaging, large amplitude signal multiplexing, programmable gain amplifiers.
Parametrics
LT1204CSW#TR absolute maximum ratings: (1)supply voltage: ±18V; (2)operating temperature range: -40 to 85℃; (3)output short-circuit duration: continuous; (4)specified temperature range: 0 to 70℃; (5)lead temperature: 300℃; (6)junction temperature: 150℃.
Features
LT1204CSW#TR features: (1)channel separation at 10MHz: 90dB; (2)40mV switching transient, input referred; (3)-3dB bandwidth, AV=2,RL=150Ω: 75MHz; (4)channel-to-channel switching time: 120ns; (5)easy to expand for more inputs; (6)large input range: ±6V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1204CSW#TR |
|

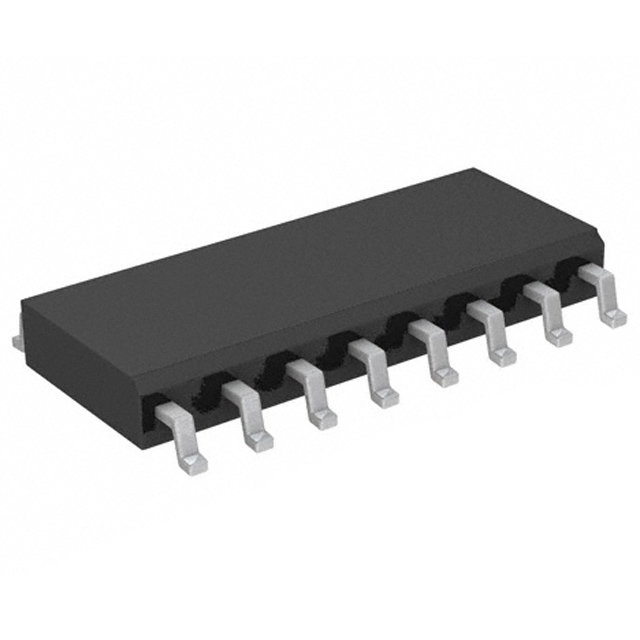

IC MUX VIDEO 75MHZ 4INPUT 16SOIC |
Data Sheet |
|
|
||||||
|
LT1204CSW#TRPBF |
|
IC VIDEOMUX CFA 75MHZ 4IN 16SOIC |
Data Sheet |
|
|
||||||
