Product Summary
The LT1223CS8#TR is a 100MHz current feedback amplifier. Its high slew rate, 1000V/μs, wide supply range, ±15V, and large output drive, ±50mA, make it ideal for driving analog signals over double-terminated cables. Its applications include video amplifiers, buffers, IF and RF amplification, cable drivers.
Parametrics
LT1223CS8#TR absolute maximum ratings: (1)supply voltage: 18V; (2)differential input voltage: 5V; (3)input voltage: equal to supply voltage; (4)output short circuit duration: continuous; (5)operating temperature range: -55 to 125℃.
Features
LT1223CS8#TR features: (1)1000V/μs slew rate; (2)1mV input offset voltage; (3)wide supply range: 5V to 15V; (4)75ns settling time to 0.1%; (5)6mA quiescent current; (6)50mA output current; (7)1μA input bias current; (8)available in 8-lead plastic DIP and SO packages; (9)5MΩ input resistance.

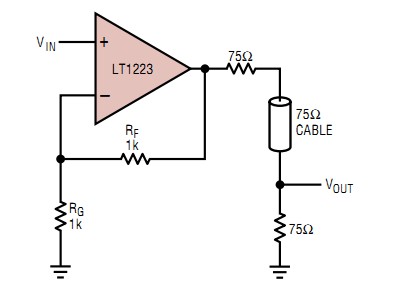

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1223CS8#TR |
|
IC AMP CURR FEEDBCK 100MHZ 8SOIC |
Data Sheet |
|
|
||||||
|
LT1223CS8#TRPBF |
|
IC CURRNT FEEDBK AMP100MHZ 8SOIC |
Data Sheet |
|
|
||||||
