Product Summary

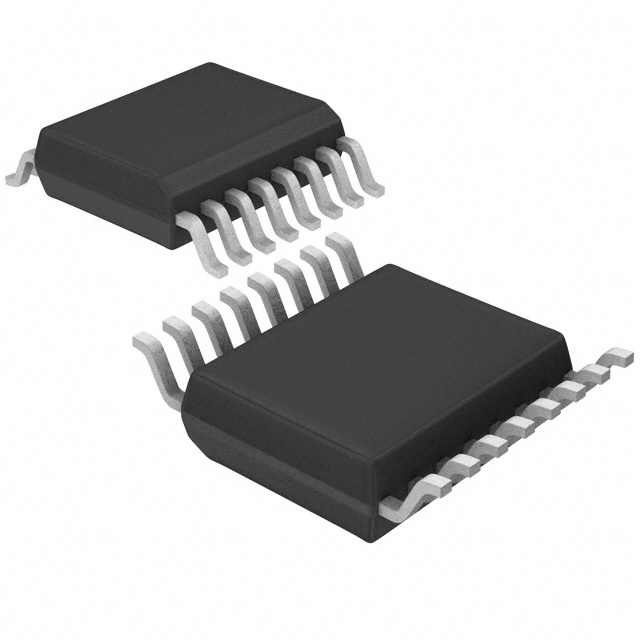

The LT1675CGN#TR is a triple and single RGB multiplexer with amplifiers. Its applications include RGB Switching, Workstation Graphics, Pixel Switching, Coaxial Cable Drivers, High Speed Signal Processing. The LT1675CGN#TR is a single version with two inputs, a single output and is ideal for a single channel application such as video sync. Unlike competitive solutions that are in bulky high pin count packages, the LT1675CGN#TR is in a 16-lead narrow body SSOP.
Parametrics
LT1675CGN#TR absolute maximum ratings: (1)supply voltage: ±6.3V; (2)specified temeprature range: 0 to 70℃; (3)storage temperature range: -65 to 150℃; (4)lead temperature: 300℃.
Features
LT1675CGN#TR features: (1)Channel Switching Time: 2.5ns; (2)Expandable to Larger Arrays; (3)Drives Cables Directly; (4)High Slew Rate: 1100V/µs; (5)Low Switching Transient: 50mV; (6)Shutdown Supply Current: 100µA.

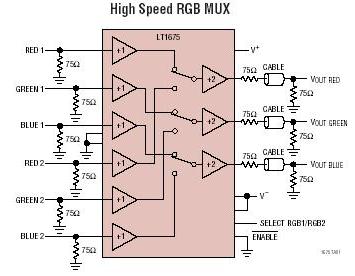

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1675CGN#TR |
|
IC MUX RGB TRIPLE 250MHZ 16SSOP |
Data Sheet |
|
|
||||||
|
LT1675CGN#TRPBF |
|
IC MUX RGB HISPEED TRIPLE 16SSOP |
Data Sheet |
|
|
||||||
