The LT1813IS8#TR is a low power, high speed, very high slew rate operational amplifier with excellent DC performance. The LT1813IS8#TR features reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth. The LT1813IS8#TR circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. Applications of the LT1813IS8#TR: Wideband Amplifiers, Buffers, Active Filters, Video and RF Amplification, Cable Drivers, Data Acquisition Systems.
Parametrics
LT1813IS8#TR absoltue maximum ratings: (1) Supply Voltage (V+ to V-) : 12.6V; (2) Differential Input Voltage(transient only) : ±3V; (3) Input Voltage: ±Vs; (4) Output Short-Circuit Duration: Indefinite; (5) Operating Temperature Range: -40°C to 85°C; (6) Specified Temperature Range: -40°C to 85°C; (7) Maximum Junction Temperature: 150°C; (8) Storage Temperature Range: -65°C to 150°C; (9) Lead Temperature (Soldering, 10 sec) : 300°C.
Features
LT1813IS8#TR features: (1) 100MHz Gain Bandwidth Product; (2) 750V/μs Slew Rate; (3) 3.6mA Supply Current Per Amplifier; (4) Tiny 3mm x 3mm x 0.8mm DFN Package; (5) 8nV/√Hz Input Noise Voltage; (6) Unity-Gain Stable; (7)1.5mV Maximum Input Offset Voltage; (8) 4μA Maximum Input Bias Current; (9) 400nA Maximum Input Offset Current; (10) 40mA Minimum Output Current, Vout=±3V; (11) ±3.5V Minimum Input CMR, Vs=±5V; (12) Specified at ±5V, Single 5V ; (13) Available in MS8 and SO-8 Packages.

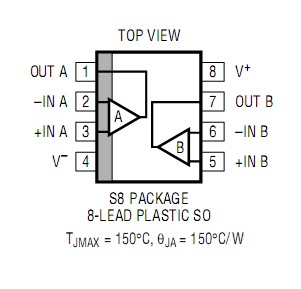

Diagrams
