Product Summary
The LT1884IS8#TR op amp brings high accuracy input performance to amplifier with rail-to-rail output swing while providing faster response than other precision amplifiers. Input offset voltage of the LT1884IS8#TR is trimmed to less than 50μV and the low drift maintains this accuracy over the operating temperature range. Applications of the LT1884IS8#TR include: Thermocouple Amplifiers, Bridge Transducer Conditioners, Instrumentation Amplifiers, Battery-Powered Systems, Photo Current Amplifiers, Precision Integrators, Precision Current Sources.
Parametrics
LT1884IS8#TR aboslute maximum ratings: (1) Supply Voltage (V+ to V- ) : 40V; (2) Differential Input Voltage: ±10V; (3) Input Voltage: V+ to V-; (4) Input Current: ±10mA; (5) Output Short-Circuit Duration: Indefinite; (6) Operating Temperature Range: -40°C to -85°C; (7) Specified Temperature Range: -40°C to -85°C; (8) Maximum Junction Temperature: 150°C; (9) Storage Temperature Range: -65°C to 150°C; (10) Lead Temperature (Soldering, 10 sec) : 300°C.
Features
LT1884IS8#TR features: (1) Offset Voltage: 50μV Max; (2) Offset Voltage Drift: 0.8V/°C Max; (3) Rail-to-Rail Output Swing; (4) Operates with Single or Split Supplies; (5) Open-Loop Voltage Gain: 1 Million Min; (6) 1mA Maximum Supply Current Per Amplifier; (7) Slew Rate: 1V/μs; (8) Standard Pinouts.

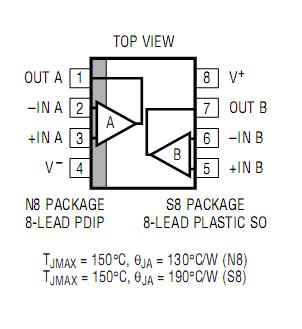

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1884IS8#TR |
|
IC OPAMP DUAL R-R PICO/IN 8SOIC |
Data Sheet |
|
|
||||||
|
LT1884IS8#TRPBF |
|
IC OPAMP DUAL R-R PICO/IN 8SOIC |
Data Sheet |
|
|
||||||
