Product Summary
The LT6203CMS8#TR is a low noise, rail-to-rail input and output unity gain stable op amp that features 1.9nV/√Hz￣ noise voltage and draw only 2.5mA of supply current per amplifier. The LT6203CMS8#TR combines very low noise and supply current with a 100MHz gain bandwidth product, a 25V/μs slew rate, and are optimized for low supply signal conditioning systems. Applications of the LT6203CMS8#TR include: low noise, low power signal processing, active filters, rail-to-rail buffer amplifiers, driving A/D converters, DSL receivers, battery powered/battery backed equipment.
Parametrics
LT6203CMS8#TR absolute maximum ratings: (1) Total Supply Voltage (V+ to V-): 12.6V; (2) Input Current: ±40mA; (3) Output Short-Circuit Duration: Indefinite; (4) Operating Temperature Range: -40°C to 85°C; (5) Specified Temperature Range: -40°C to 85°C; (6) Junction Temperature: 150°C; (7) Junction Temperature (DD Package) : 125°C; (8) Storage Temperature Range: -65°C to 150°C; (9) Storage Temperature Range((DD Package)): -65°C to 150°C; (10) Lead Temperature (Soldering, 10 sec): 300°C.
Features
LT6203CMS8#TR features: (1) Low Noise Voltage: 1.9nV√Hz￣ (100kHz) ; (2) Low Supply Current: 3mA/Amp Max; (3) Gain Bandwidth Product: 100MHz; (4) Dual LT6203 in Tiny DFN Package; (5) Low Distortion: -80dB at 1MHz; (6) Low Offset Voltage: 500μV Max; (7) Wide Supply Range: 2.5V to 12.6V; (8)Input Common Mode Range Includes Both Rails; (9) Output Swings Rail-to-Rail; (10) Common Mode Rejection Ratio 90dB Typ; (11) Unity Gain Stable; (12) Low Noise Current: 1.1pA/√Hz￣; (13) Output Current: 30mA Min; (14) Operating Temperature Range : -40°C to 85°C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT6203CMS8#TR |
|

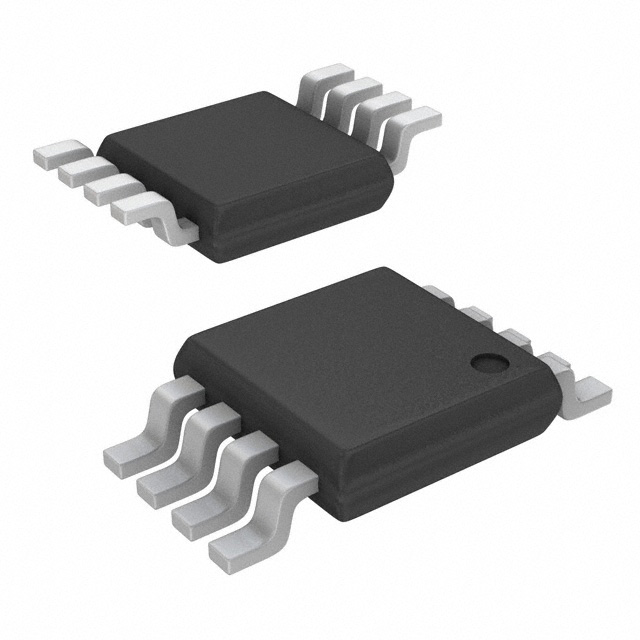

IC OPAMP R-R INOUT DUAL LP 8MSOP |
Data Sheet |
|
|
||||||
|
LT6203CMS8#TRPBF |
|
IC OPAMP R-R INOUT DUAL LP 8MSOP |
Data Sheet |
|
|
||||||
