Product Summary

The LTC1069-1IS8#TR is a monolithic 8th order lowpass filter featuring clock-tunable cutoff frequency and 2.5 mA power supply current with a single 5 V supply. An additional feature of the LTC1069-1IS8#TR is operation with a single 3.3 V supply. The cutoff frequency (Fcutoff) of the LTC1069-1 is equal to the clock frequency divided by 100. Applications of LTC1069-1IS8#TR include: telecommunication filters and antialiasing filters.

Parametrics

The LTC1069-1IS8#TR absolute maximum ratings: (1) Total Supply Voltage (V+ to V -):12 V ; (2) Maximum Voltage at Any Pin: (V - - 0.3 V) ≤V ≤(V+ +0.3 V) ; (3) Operating Temperature Range: LTC1069-1C: 0°C to 70°C , LTC1069-1I: -40°C to 85°C; (4) Storage Temperature Range: -65°C to 150°C; (5) Lead Temperature (Soldering, 10 sec): 300 °C .

Features

LTC1069-1IS8#TR features: (1) 8th Order Elliptic Filter in SO-8 Package; (2) Operates from Single 3.3V to 5V Power Supplies; (3) -20dB at 1.2 fCUTOFF ; (4) -52dB at 1.4 fCUTOFF; (5) -70dB at 2 fCUTOFF; (6) Wide Dynamic Range; (7) 110 μVRMS Wideband Noise; (8) 3.8mA Supply Current with ± 5 V Supplies; (9) 2.5mA Supply Current with Single 5V Supply; (10) 2mA Supply Current with Single 3.3V Supply .

Diagrams

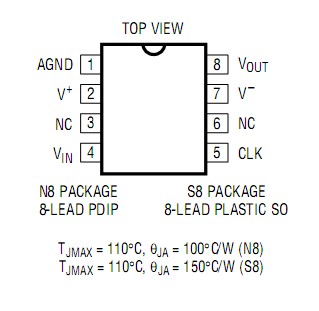

LTC1069-1IS8#TR Pin  Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC1069-1IS8#TR
LTC1069-1IS8#TR


IC FILTER LP 8TH ORD LOPWR 8SOIC

Data Sheet

0-2500: $3.30
LTC1069-1IS8#TRPBF
LTC1069-1IS8#TRPBF


IC FILTR 8TH ORDER LOWPASS 8SOIC

Data Sheet

0-2500: $3.30
