LTC1152CS8#TR

Product Summary

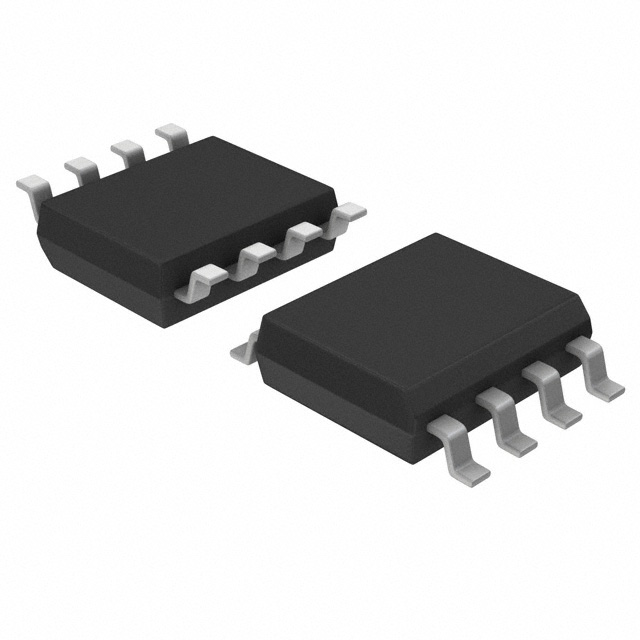

The LTC1152CS8#TR is a high performance, low power zero-drift op amp featuring an input stage that common modes to both power supply rails and an output stage that provides rail-to-rail swing, even into heavy loads. The wide input common-mode range is achieved with a high frequency on-board charge pump. This technique eliminates the crossover distortion and limited CMRR imposed by competing technologies. The LTC1152CS8#TR is a C-LoadTM of amp, enabling it to drive any capacitive load. The LTC1152CS8#TR shares the excellent DC performance specs of LTC’s other zero-drift amplifiers. Typical offset voltage is 1μV and typical offset drift is 10nV/℃. CMRR and PSRR are 130dB and 120dB and open-loop gain is 130dB. Input noise voltage is 2μVP-P from 0.1Hz to 10Hz. Gain-bandwidth product is 0.7MHz and slew rate is 0.5V/ms, all with supply current of 3.0mA max over temperature. The LTC1152CS8#TR also includes a shutdown feature which drops supply current to 1μA and puts the output stage in a high impedance state. The LTC1152CS8#TR is available in 8-pin PDIP and 8-pin SO packages and uses the standard op amp pinout, allowing it to be a plug-in replacement for many standard op amps.

Parametrics

LTC1152CS8#TR absolute maximum ratings: (1)Total Supply Voltage (V + to V –): 14V; (2)Input Voltage: V + + 0.3V to V – – 0.3V; (3)Output Short-Circuit Duration (Pin 6): Indefinite; (4)Operating Temperature Range: 0℃ to 70℃; (5)Storage Temperature Range: –65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1152CS8#TR features: (1)Input Common-Mode Range Includes Both Rails; (2)Output Swings Rail to Rail; (3)Output Will Drive 1kΩ Load; (4)No External Components Required; (5)Input Offset Voltage: 10μV Max; (6)Input Offset Drift: 100nV/℃ Max; (7)Minimum CMRR: 115dB; (8)Supply Current: 3.0mA Max; (9)Shutdown Pin Drops Supply Current to 5μA Max; (10)Output Configurable to Drive Any Capacitive Load; (11)Operates from 2.7V to 14V Total Supply Voltage.

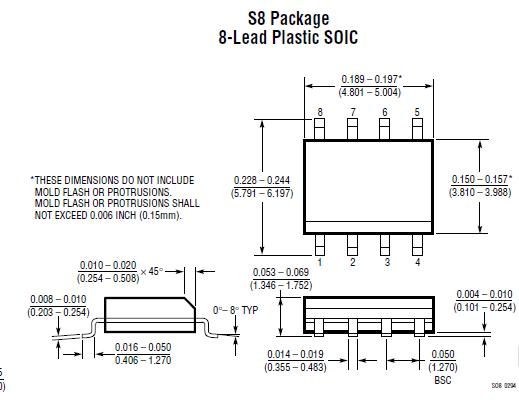

Diagrams
