Product Summary
The LTC1263CS8#TR is a regulated 12V, 60mA output DC/DC converter. It provides the 12V ?% output necessary to program double byte-wide flash memories. The output provides 60mA from input voltages as low as 4.75V without using any inductors. Only four external capacitors are required to complete an extremely small, surface mountable circuit. The output can be momentarily shorted to ground without damaging the part. The applications of the LTC1263CS8#TR include 12V Flash Memory Programming Supplies, Compact 12V Op Amp Supplies, Battery-Powered Systems.
Parametrics
LTC1263CS8#TR absolute maximum ratings: (1)Supply Voltage (VDD): 6V; (2)Input Voltage (SHDN): -0.3V to VCC + 0.3V; (3)IOUT Continuous: 90mA; (4)Operating Temperature Range: 0℃ to 70℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1263CS8#TR features: (1)Guaranteed 60mA Output; (2)Regulated 12V ±5% Output Voltage; (3)No Inductors; (4)Supply Voltage Range: 4.75V to 5.5V; (5)ICC 0.5mA Typ in Shutdown; (6)Low Power: ICC = 300mA; (7)8-Pin SO Package; (8)Same Pinout as LTC1262 and MAX662.

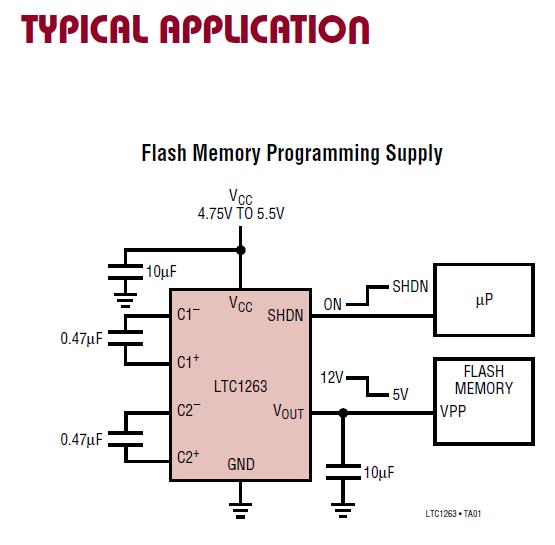

Diagrams
