Product Summary
The LTC1400CS8#TR is a complete 400ksps, 12-bit A/D converter which draws only 75mW from 5V or ±5V supplies. This easy-to-use device comes complete with a 200ns sample-and-hold and a precision reference. Unipolar and bipolar conversion modes add to the flexibility of the ADC. The LTC1400CS8#TR has two power saving modes: Nap and Sleep. In Nap mode, it consumes only 6mW of power and can wake up and convert immediately. In the Sleep mode, it consumes 30μW of power typically. The applications of the LTC1400CS8#TR include High Speed Data Acquisition, Digital Signal Processing, Multiplexed Data Acquisition Systems, Audio and Telecom Processing, Digital Radio, Spectrum Analysis, Low Power and Battery-Operated Systems, Handheld or Portable Instruments.
Parametrics
LTC1400CS8#TR absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Negative Supply Voltage (VSS): -6V to GND; (3)Total Supply Voltage (VCC to VSS), Bipolar Operation Only: 12V; (4)Analog Input Voltage (Note 3), Unipolar Operation: -0.3V to (VCC + 0.3V); Bipolar Operation: (VSS -0.3V) to (VCC + 0.3V); (5)Digital Input Voltage (Note 4), Unipolar Operation: -0.3V to 12V; Bipolar Operation: (VSS -0.3V) to 12V; (6)Digital Output Voltage, Unipolar Operation: -0.3V to (VCC + 0.3V); Bipolar Operation: (VSS -0.3V) to (VCC + 0.3V); (7)Power Dissipation: 500mW.
Features
LTC1400CS8#TR features: (1)Complete 12-Bit ADC in SO-8; (2)Single Supply 5V or ±5V Operation; (3)Sample Rate: 400ksps; (4)Power Dissipation: 75mW (Typ); (5)72dB S/(N + D) and –80dB THD at Nyquist; (6)No Missing Codes over Temperature; (7)Nap Mode with Instant Wake-Up: 6mW; (8)Sleep Mode: 30μW; (9)High Impedance Analog Input; (10)Input Range (1mV/LSB): 0V to 4.096V or ±2.048V; (11)Internal Reference Can Be Overdriven Externally; (12)3-Wire Interface to DSPs and Processors (SPI and MICROWIRE Compatible).

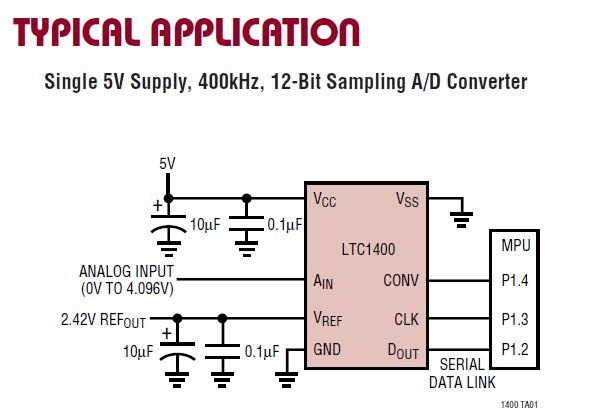

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1400CS8#TR |
|
IC ADC 12BIT 400KSPS SHTDN 8SOIC |
Data Sheet |
|
|
||||||
|
LTC1400CS8#TRPBF |
|
IC A/D CONV 12BIT W/SHTDN 8-SOIC |
Data Sheet |
|
|
||||||
