Product Summary
The LTC1540CS8#TR is an ultralow power, single comparator with built-in reference. The comparator’s features include less than 0.6mA supply current over the commercial temperature range, a 1.182V ±2% reference, programmable hysteresis and TTL/CMOS outputs that sink and source current. The reference output can drive a bypass capacitor of up to 0.01mF without oscillation. The applications of the LTC1540CS8#TR include Battery-Powered System Monitoring, Threshold Detectors, Window Comparators, Oscillator Circuits.
Parametrics
LTC1540CS8#TR absolute maximum ratings: (1)Voltage, V+ to V-, V + to GND, GND to V-: 12V to -0.3V; IN +, IN -, HYST: (V+ + 0.3V) to (V- -0.3V); REF: (V+ + 0.3V) to (V- -0.3V); OUT: (V+ + 0.3V) to (GND - 0.3V); (2)Current, IN +, IN –, HYST: 20mA; REF: 20mA; OUT: 50mA; (3)OUT Short-Circuit Duration (V + ≤ 5.5V): Continuous; (4)Power Dissipation: 500mW; (5)Operating Temperature Range: 0℃ to 70℃; (6)Storage Temperature Range: -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1540CS8#TR features: (1)Ultralow Quiescent Current: 0.3μA Typ; (2)Reference Output Drives 0.01mF Capacitor; (3)Adjustable Hysteresis; (4)Wide Supply Range: 2V to 11V; (5)Input Voltage Range Includes the Negative Supply; (6)Reference Output Sources Up to 1mA; (7)TTL/CMOS Compatible Outputs; (8)60ms Propagation Delay with 10mV Overdrive; (9)No Crowbar Current; (10)40mA Continuous Source Current; (11)Pin Compatible with LTC1440, MAX921, MAX931.

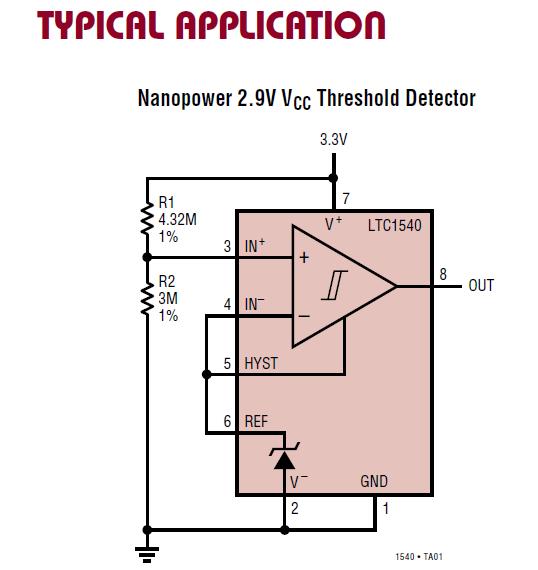

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1540CS8#TR |
|
IC COMPARATOR 2% VOLT REF 8SOIC |
Data Sheet |
|
|
||||||
|
LTC1540CS8#TRPBF |
|
IC COMP NANOPOWER W/REF 8-SOIC |
Data Sheet |
|
|
||||||
